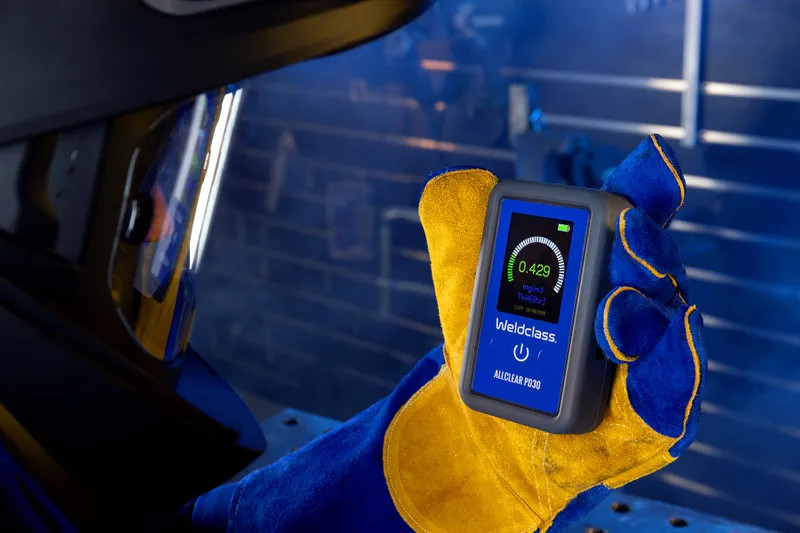

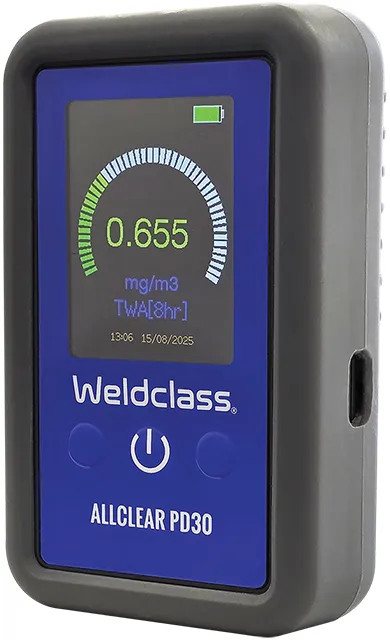

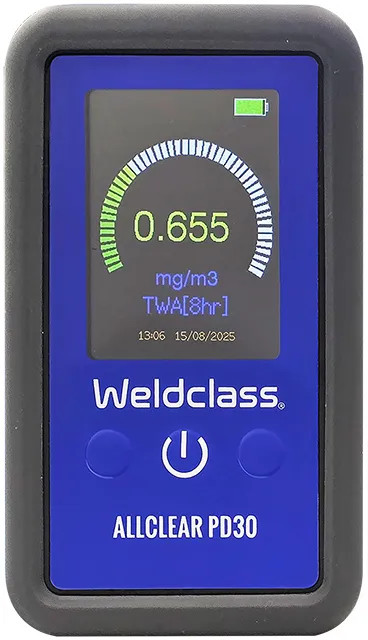

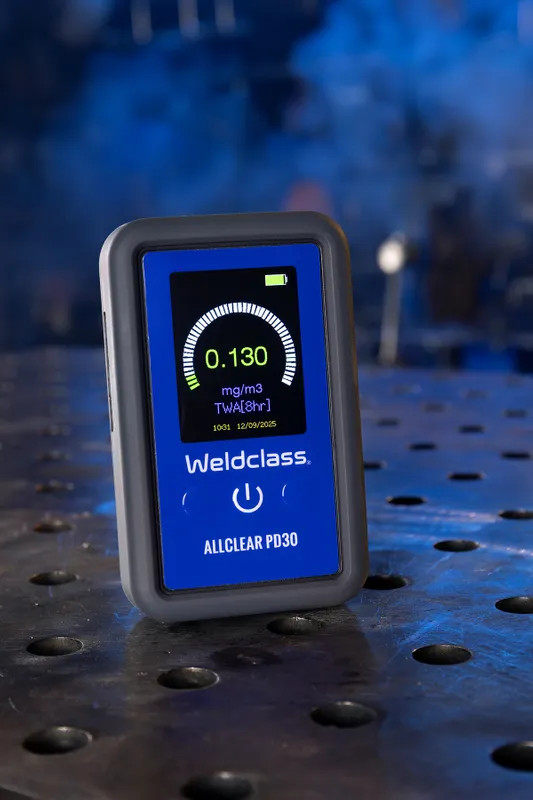

Stay on top of workplace air quality with the Australian-made ALLCLEAR PD30 personal welding fume monitor. Lightweight and wearable, it provides real-time TWA (time-weighted average) readings so you know exactly what your team is breathing. With 12+ hours of runtime at a 1-second sampling rate and simple, colour-coded display, the PD30 is a dependable and easy-to-use solution for keeping welders safe on the job.
PD30 data can be viewed directly on the device, via WiFi on a mobile phone, or through our cloud platform - where multiple devices can be connected to monitor fume levels across your workforce and workplace.
KEY FEATURES

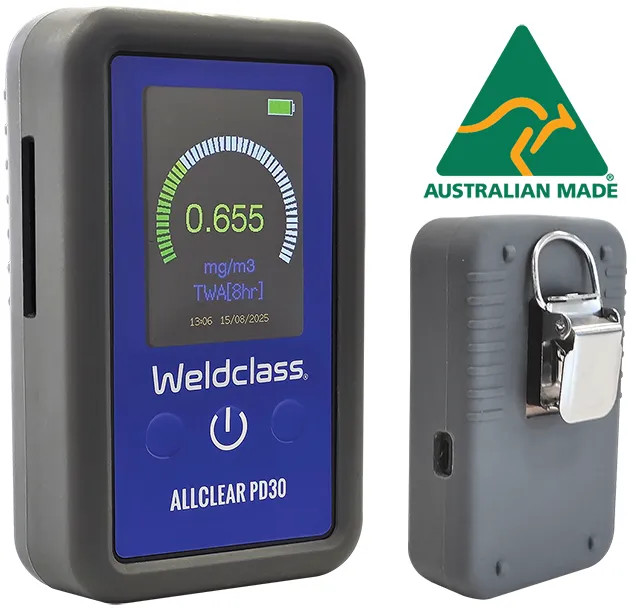

- Designed and Made in Australia
- Wearable: measure fume right where your team works
- TWA (time weighted average) reading, as required by Australian legislation
- Small and lightweight: 260g
- Runtime of 12+ hours with 1 second sample rate
- Shock absorbent protective rubber cover

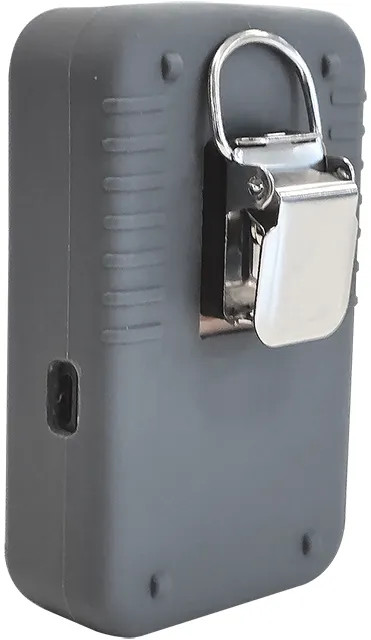

- Tough metal clip attaches to clothing or belts
SPECIFICATIONS
- Dimensions: H120 x W74 x D32mm
- Weight: 260g
- Charge cable connection: USB-C
- Battery life: 12+ hours, or 18 hours in power save mode
- Data connection: WiFi
- Data storage: 3 years
- Mounting: Metal material/clothing clip + D-loop ring
TECHNICAL DATA
- Particle size detection range: 0.3um – 10um
- Warnings: Inhalable / Respirable TWA8H (Time Weighted 8 Hours), and Inhalable / Respirable STEL (Short Term Exposure Limit)
- Housing material: Silicone rubber
- Mounting
- Battery size/type: 3.7V lithium ion
- Charger specifications: 240V 10A, 5V 1amp, USB-C connection
- Data connection: WiFi 802.11 b/g/n
- CPU: 240 Mhz
- Operating temperature range: -10OC to +60OC
- Operating humidity range: 0-90%, non-condensing
- Measuring method: Photometric (scattered laser)
- Measurement interval: 1 per second
- Sampling method: Dynamic controlled fan
- Display: 2.4 inch TFT, full colour
- Callibration and maintenance: Return to Weldclass for service & callibration every 2 years from date of issue
- Country of origin: Made in Australia
- Datalog file format: CSV
- Datalog file grouping: Daily
- Datalog retrieval: Webserver, to smart device or PC
- Memory capacity: 16GB SD card + 4GB internal
