- Powerful electric motor
- Maximum 18mm bevel width (more than one pass may be required)
- Mill edges of plates and pipes made of steel, aluminium alloys, brass or plastic
- Bevel materials with minimum thickness of 1.5mm
- Continuous bevel width adjustment
- New more durable milling heads with hexagonal fixing
- Easy replacement of milling head
- Rounding inserts R2, R3, R4 or R5 available
- 4-sided indexable cutting inserts (sold separately)
Standard Set Includes:

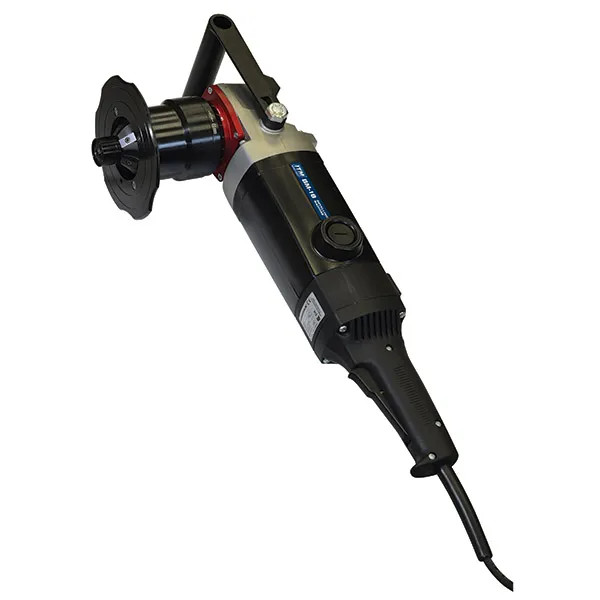

- WA-BM18 bevelling machine without milling head
- Plastic box
- 32mm flat wrench
- Allen wrench hex s=6
- Does not include milling head
- Contact block
- 6mm hex wrench
- Operators manual
Specifications
- Power: 2200 W
- Spindle Speed (Without Load): 1800 - 5850 rpm
- Maximum Bevel Width: 18mm
- Bevel Angle (Depending On Milling Head): B = 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
- Minimum Workpiece Thickness: 2mm
- Minimal Diameter Of Countersinking: ca 40mm
- Rounding Edges: R2, R3, R4, R5
- Dimensions (L x W x H): 585mm × 156mm × 238mm
- Weight (Without Milling Head): 10kg
