Bundle Contents:
- Unimig Envy TIG 230 AC/DC Welder (U11024)
- Unimig Envy TIG 230 AC/DC Trolley (U11025)
- Unimig Envy TIG 230 AC/DC Water Cooler (U11026)
- Unimig ARC Torchology T3W Water-Cooled TIG Torch 8m (T3W-3KHL-8m)
Includes:
UNIMIG Envy TIG 230 AC/DC Welder:
Filled with the latest TIG technologies, The ENVY 230 AC/DC professional-grade TIG welder produces superior welds every time.
- First-of-its-kind, next-generation silicon carbide IGBT technology
- Extra control with advanced TIG parameters
- Maintain a stable arc as low as 2A
Package Includes:
- ENVY TIG 230 AC/DC Welder

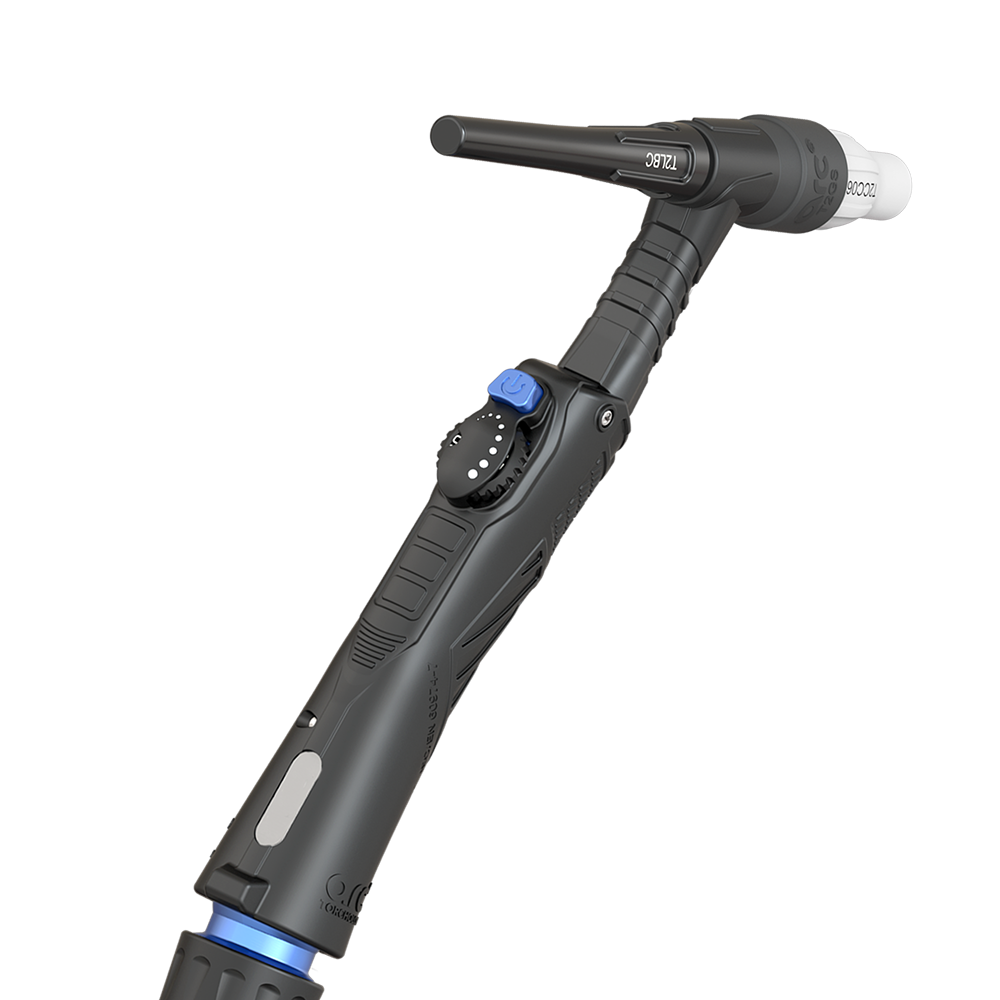

- 8m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 1.8m Quick-Connect Gas Hose
- 15A to 10A Conversion Lead
- Operating Manual
Envy TIG 230 AC/DC Trolley:
Maximise your flexibility, portability and manoeuvrability with the ENVY TIG 230 AC/DC Trolley.
- Transport your machine and gas gear wherever you need
- Easily secure the ENVY TIG 230 AC/DC to the trolley
- Holds up to a G size gas cylinder
Envy TIG 230 AC/DC Water Cooler:
The perfect accessory, the ENVY TIG 230 AC/DC Water Cooler, helps you maximise your TIG welding performance.
- Weld at higher amperages and for longer periods of time without overheating
- Extend the life of the TIG consumables when combined with the T3W Water-Cooled TIG Torch
- Bi-Flow™ Technology – a series of high-capacity cooling chambers – removes excessive heat at the source for greater performance from the TIG Torch
T3W Water-Cooled TIG Torch:
The ARC TORCHOLOGY® T3W Water-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body!
- PRIMARY INPUT VOLTAGE:
- 240V Single Phase
- SUPPLY PLUG:
- 10/15A
- Ieff (A):
- 9.7A (10A) / 14.8A (15A)
- RATED OUTPUT:
- 2-230A
- NO LOAD VOLTAGE (V):
- 100
- PROTECTION CLASS:
- IP21S
- INSULATION CLASS:
- H
- MINIMUM GENERATOR (kVA):
- 8.0
- DINSE CONNECTOR:
- 35/50
- STANDARD:
- AS 60974.1
- WARRANTY:
- 5 Years
- TIG FUNCTION TYPE:
- AC/DC HF TIG & AC/DC Pulse
- TIG WELDING CURRENT RANGE:
- 2-230A
- TIG WELDING THICKNESS RANGE:
- 1-12mm
- STICK WELDING CURRENT RANGE:
- 10-200A
- STICK ELECTRODE RANGE:
- 2.5-4.0mm
- STICK WELDING THICKNESS RANGE:
- 2-12mm
- DIMENSIONS (mm):
- 680x210x395mm
- WEIGHT (kg):
- 20.6
- VRD:
- YES
- FOOT CONTROL CONNECTION:
- YES
