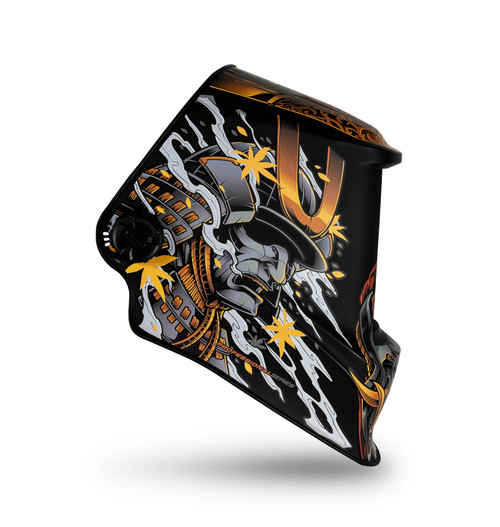

Impact Series Welding Helmet

Product Description
Specifications

The Impact Series helmet keeps your eyes and face shielded while you weld.

Clear visibility in every situation with a 98x62mm view
EliteVision™ Lens Technology lets you see the weld clearly with a true colour view
The best optical clarity with 1/1/1/1 classifications

Features & Specifications:

Features:

ELITEVISION™ Lens Technology

ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.

External Grind Button

Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.

1/1/1/1 Classification

Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.

Backup Battery

A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.

4 Point Harness

Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain

REPLACABLE PARTS

OUTER LENS

U21041 (Impact Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)

HARNESS

U21035

SWEAT BAND

U21036

FILTER DIMENSIONS:: 110x90x10mm

VIEW SIZE:: 98x62mm

ARC SENSORS:: 4

CLASSIFICATION:: 1/1/1/1

LIGHT STATE:: 3

DARK STATE:: 5-13

UV/IR PROTECTION:: DIN15

TIME FROM LIGHT TO DARK:: 0.08ms

TIME FROM DARK TO LIGHT:: 0.1-0.8s

SENSITIVITY DELAY:: Adjustable

POWER SUPPLY:: Solar Cells & CR2450 Replaceable Battery

WARRANTY:: 3 Years

OPERATING TEMPERATURE:: -5˚C to 65˚C

STORAGE TEMPERATURE:: -20˚C to 65˚C

SHADE CONTROL:: Yes

GRIND MODE:: Yes (External)

STANDARDS:: AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
