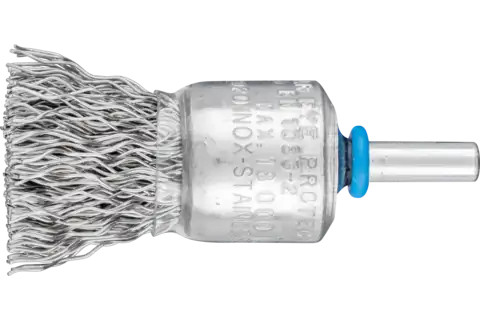

Pferd 20 x 22mm Crimped Pencil Brush PBU 2022/6 Inox 0.50

Product Description

Technical information

POS end brush crimped PBU dia. 20 mm shank dia. 6 mm stainless steel wire dia. 0.50

Dia. cup22 mm

Dia. external20 mm

Dia. filament material0.5 mm

Dia. shank6 mm

Filament material Stainless steel wire (INOX)

Length, filament25 mm

Length, total70 mm

Max. RPM18000 RPM

Mounting system Shank

PFERD TOOLS type POS PBU 2022/6 INOX 0,50

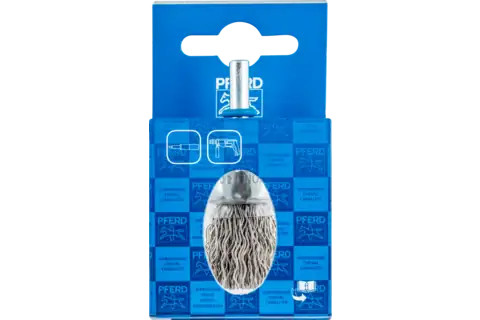

Packaging POS packaging

RPM, optimum7200 - 11700 RPM

Packaging unit1 piece

Description

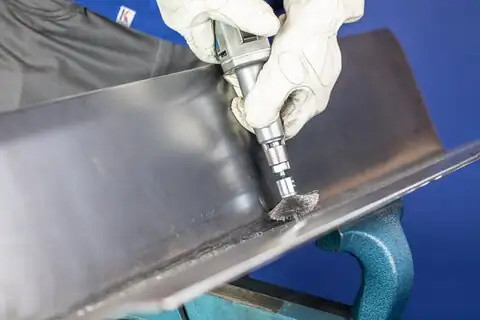

Suitable for light brushing such as deburring, cleaning and derusting.

End brush with plastic-covered brush body.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310/1.4301 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310/1.4301 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Special features

Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
The plastic covering prevents the risk of corrosion.
Very good corrosion resistance.
Creates fine surfaces.
The brush is degreased and does not leave any oil residue on the workpiece.

Recommendations for use

Please observe the recommended rotational speeds.
For the best results, use a tool drive with a minimum output of 300 watts.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Materials that can be worked

AluminiumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Nickel or titanium-based superalloysOther non-ferrous metalsSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloys

Applications

Cleaning Deburring Derusting Paint stripping Removing heat discolouration Removing oxide layers Roughening

Drive types

Flexible shaft drive Power drill Straight grinder
