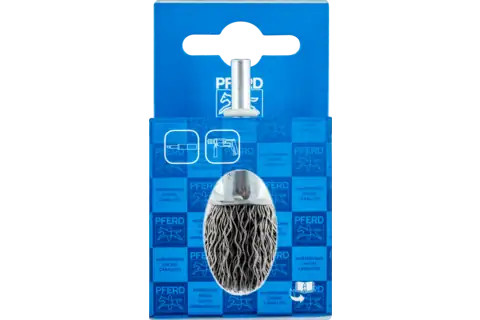

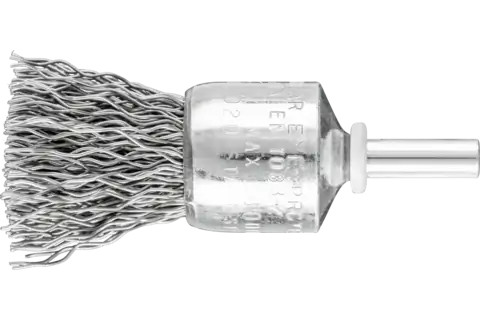

Pferd 20 x 22mm Crimped Pencil Brush PBU 2022/6 Steel 0.50

Was: $18.80

Now: $16.50

No reviews yet Write a Review

Pferd 20 x 22mm Crimped Pencil Brush PBU 2022/6 Steel 0.50

SKU:: 43704005

Product Description

Technical information

POS end brush crimped PBU dia. 20 mm shank dia. 6 mm steel wire dia. 0.50

Dia. cup22 mm

Dia. external20 mm

Dia. filament material0.5 mm

Dia. shank6 mm

Filament material Steel wire (ST)

Length, filament25 mm

Length, total70 mm

Max. RPM18000 RPM

Mounting system Shank

PFERD TOOLS type POS PBU 2022/6 ST 0,50

Packaging POS packaging

RPM, optimum9000 - 13500 RPM

Packaging unit1 piece

Description

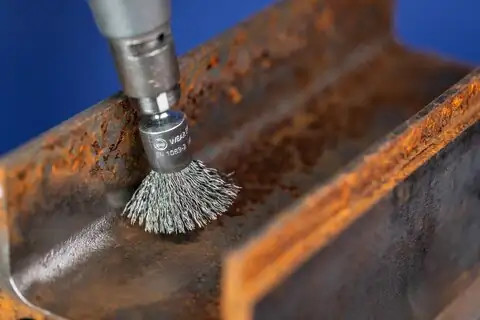

Suitable for light brushing such as deburring, cleaning and derusting.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Special features

Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
Long tool life through use of PFERD TOOLS special wire.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.
For the best results, use a tool drive with a minimum output of 300 watts.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Materials that can be worked

Cast iron Cast steel Elastomers Steel, cast steel Steel materials with a hardness > 54 HRC Steels up to 1,200 N/mm² (< 38 HRC)Wood

Applications

Cleaning Deburring Derusting Paint stripping Removing oxide layers Roughening

Drive types

Drive spindle Flexible shaft drive Power drill Straight grinder
