Pferd Spindle Mount Cup Brush 50mm Crimped Mild Steel

Product Description

Technical information

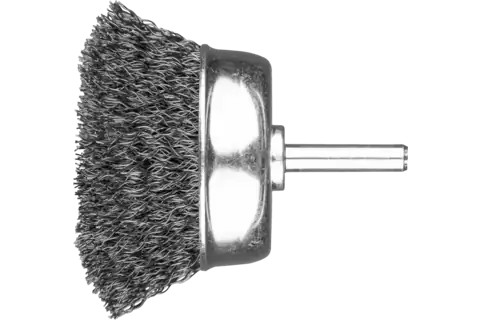

POS cup brush crimped TBU dia. 50 mm shank dia. 6.35 mm steel wire dia. 0.30 universal

Dia. external50 mm

Dia. filament material0.3 mm

Dia. shank6.35 mm

Filament material Steel wire (ST)

Length, filament19 mm

Max. RPM13000 RPM

Mounting system Shank

Packaging POS packaging

RPM, optimum6500 - 13000 RPM

Packaging unit1 piece

Description

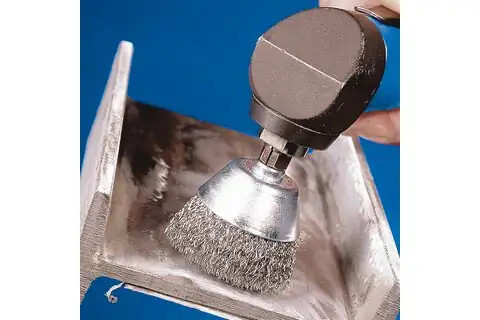

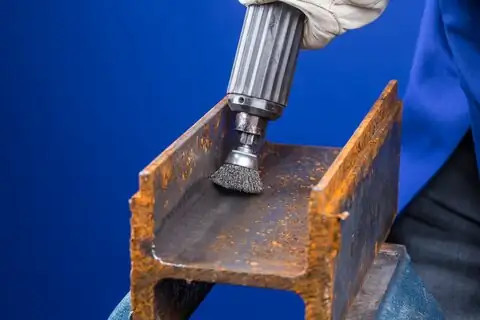

Generally suitable for cleaning, derusting and smoothing, as well as removal of corrosion and paint. Particularly suitable for brushing on large, flat and easily accessible surfaces due to face-down use with the entire brush face applied to the workpiece.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Special features

Highly flexible, enabling optimal adjustment to the workpiece contour.
Optimum presentation on the PFERD TOOLS CENTER using hanging hole and labelling with EAN number, designation and filament material.
Long tool life through use of PFERD TOOLS special wire.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.
For the best results, use a tool drive with a minimum output of 300 watts.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Materials that can be worked

Cast iron Cast steel Elastomers Steel, cast steel Steel materials with a hardness > 54 HRC Steels up to 1,200 N/mm² (< 38 HRC)Thermoplastics Thermosetting plastics Wood

Applications

Cleaning Deburring Derusting Paint stripping Removing oxide layers Roughening

Drive types

Flexible shaft drive Power drill Straight grinder
