Get powerful MIG, TIG & STICK performance on your worksite or in your workshop with the professional machine packaged in a portable case.
- Quick and easy setup with synergic MIG programs
- Spool gun ready for the best aluminium welds
- 4 geared wire drive system for the ultimate wire feeding experience
- A 5-year warranty to reflect our confidence in this machine
Package Inclusions

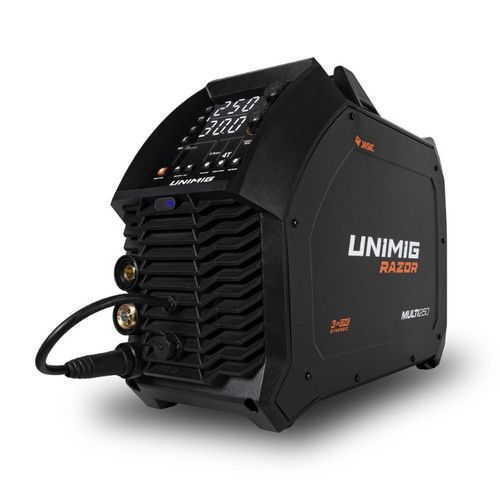

- RAZOR MULTI 250 Welder
- 4m M24 Digital MIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Gas Hose with fittings
- Operating Manual
- 0.8-0.9mm V Groove Roller
- 0.8-0.9mm F Groove Roller
- 1.0-1.2mm U Groove Roller
Specifications
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
15 AMP
Ieff (A)
15.0
RATED OUTPUT
30A/15.5V - 250A/26.5V
NO LOAD VOLTAGE (V)
65
PROTECTION CLASS
IP23S
INSULATION CLASS
H
MINIMUM GENERATOR (kVA)
11.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"
WARRANTY (Years)
5
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
30-250A
MIG DUTY CYCLE @ 40°C
20% @ 250A / 60% @ 144A / 100% @ 112A
MIG WIRE SIZE RANGE
0.6-1.2mm
MIG WIRE SPOOL SIZE
5kg / 15kg
MIG WELDING THICKNESS RANGE
1-12mm
DRIVE ROLLER SIZE
30/22 (x2)
TIG SPECIFICATIONS
TIG FUNCTION TYPE
Trigger Controlled DC Lift Arc
TIG WELDING CURRENT RANGE
5-250A
TIG DUTY CYCLE @ 40°C
20% @ 250A / 60% @ 144A / 100% @ 112A
TIG WELDING THICKNESS RANGE
1-10mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-220A
STICK DUTY CYCLE @ 40°C
20% @ 220A / 60% @ 127A / 100% @ 98A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-12mm
SIZE & WEIGHT
DIMENSIONS (mm)
700x280x511
WEIGHT (kg)
25.5
MACHINE FEATURES
WIRE DRIVE
4 Geared
VRD
YES
SPOOL GUN CONNECTION
YES
FOOT CONTROL CONNECTION
YES
BURNBACK ADJUSTMENT
YES
WIRE INCH
YES
INDUCTANCE CONTROL
YES
THERMAL OVERLOAD PROTECTION
YES
