- Effortlessly weld any metal with the high-frequency AC/DC TIG
- the Ultimate combination of AC and DC available with Mixed arc settings
- switch your AC welds to suit your needs with the choice of four waveforms

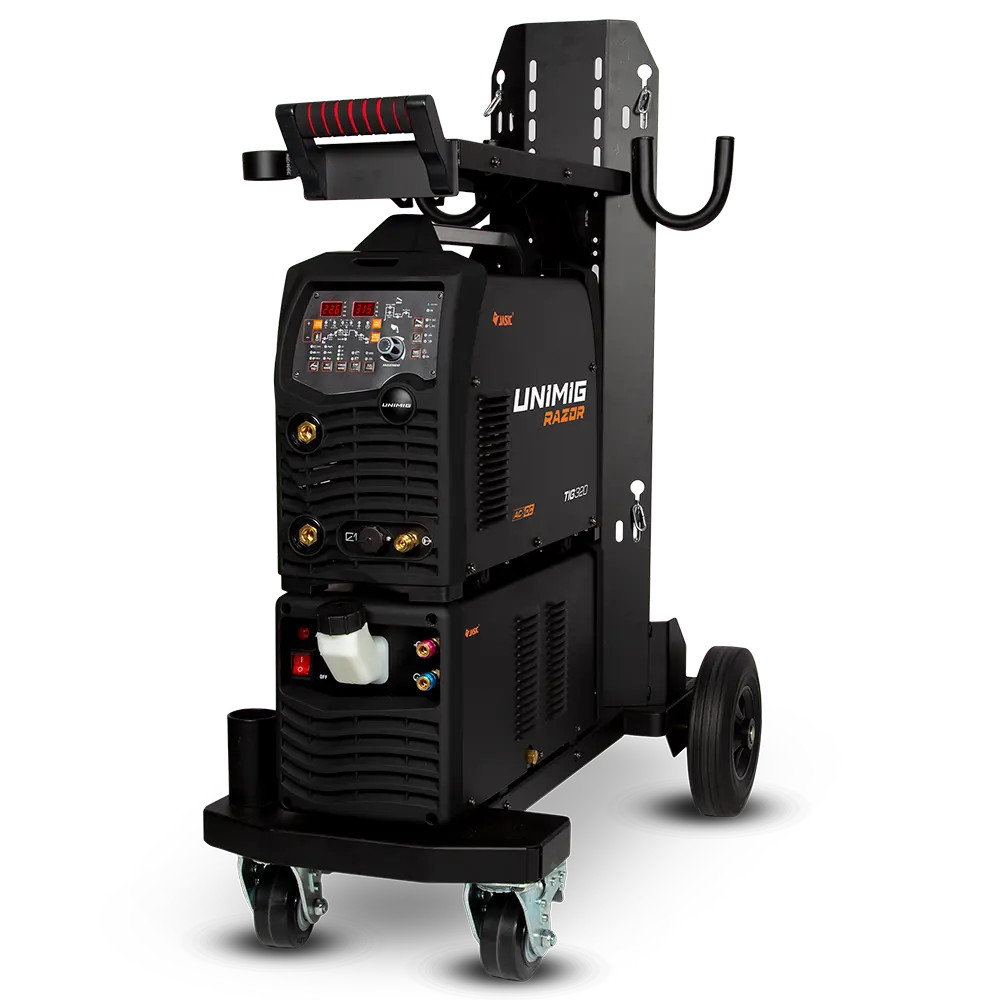

- RAZOR TIG 320 AC/DC Welder
- RAZOR TIG 320 Trolley & Water Cooler
- 4m T3 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 500A Earth Clamp & Lead
- Argon Flowmeter Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual
Primary Input Voltage
415V Three-Phase
Supply Plug
Unplugged (32A Recommended)
Ieff (A)
10.0
Imax (A)
18.0
No Load Voltage (V)
73.0
Protection Class
IP21S
Insulation Class
F
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
3 Years
Dimensions (LxWxH)
560 x 220 x 650mm
Weight (kg)
40.00
Suitable Materials
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Ignition Type
AC/DC High Frequency
AC/DC Lift Arc
TIG Current Range
5-315A
TIG Duty Cycle @ 40°C
30% @ 315A
60% @ 220A
100% @ 170A
TIG Welding Thickness Range
1-16mm
MMA Current Range
10-270A
MMA Duty Cycle @ 40°C
30% @ 270A
60% @ 185A
100% @ 145A
MMA Electrode Range
2.5-4.0mm
MMA Welding Thickness Range
2-16mm
Tank Capacity (L)
5.5
Maximum Pressure (MPa)
0.3
Maximum Flow (L/min)
5
Rated Cooling Power (kw)
1.2
Protection Class
IP21S
Standard
EN IEC60974-2
Weight (kg)
14.8
Dimensions (LxWxH)
500 x 200 x 234mm
