- Easily navigate and adjust parameters with the LCD touchscreen
- 65mm clean cut and 80mm severance, the ultimate in cutting performance
- The CNC connection means you can use this machine for every kind of plasma application

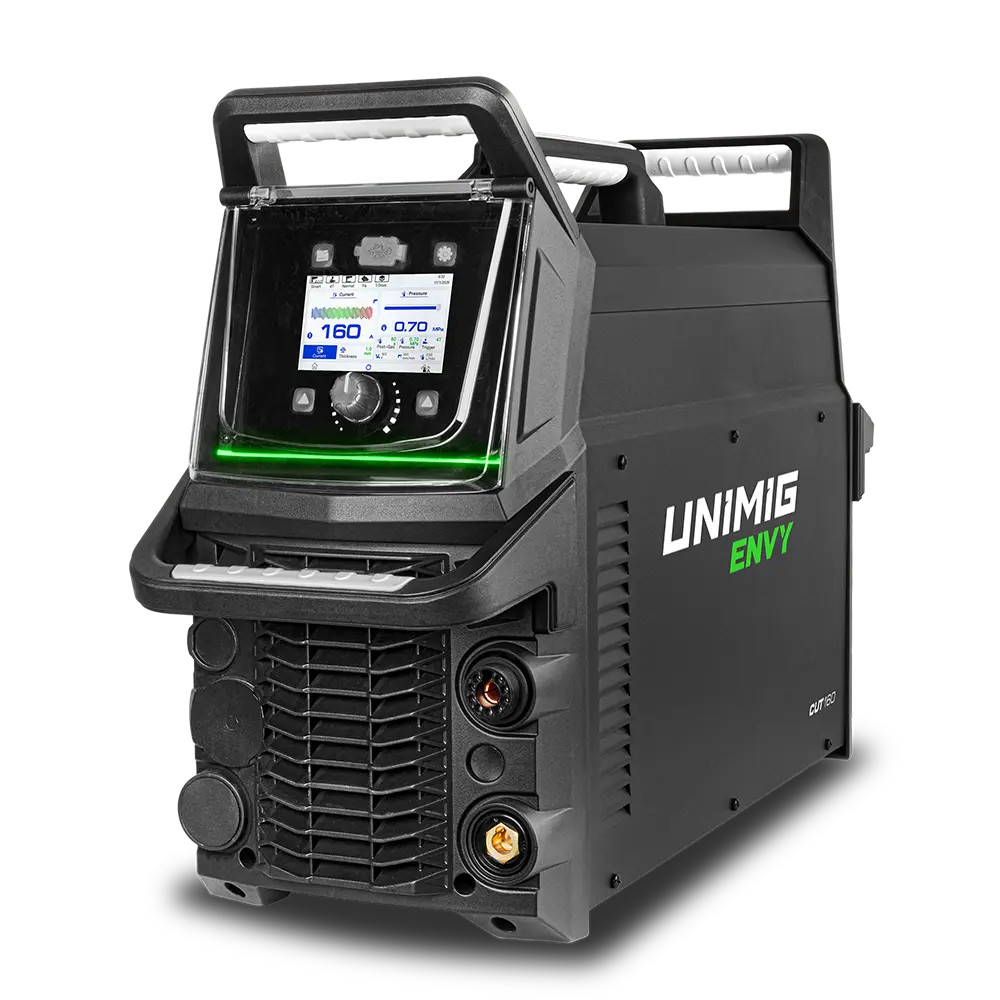

- ENVY CUT 160 Plasma Cutter
- 6m SC160 Plasma Torch
- 4m 300A Earth Clamp & Lead
- Operating Manual
Additional Features
Job Memory
The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
Air Test
Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 40kVA for this machine.
Specifications
Primary Input Voltage
415V Three-Phase
Supply Plug
32A
Ieff (A)
32.9
Imax (A)
42.4
Air Flow Draw (L/min)
140-330
Air Flow Pressure
43.5-101.5 psi
3-7 bar
0.3-0.7 MPa
Open Circuit Voltage (OCV)
400.0
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
40.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Dimensions (LxWxH)
810 x 280 x 520mm
Weight (kg)
45.40
Plasma Cut Current Range
20-160A
Plasma Cut Duty Cycle @ 40°C
60% @ 160A
100% @ 100A
Mild Steel Cut Thickness
65mm
Mild Steel Severance Thickness
80mm
Stainless Steel Cut Thickness
60mm
Aluminium Cut Thickness
50mm
Copper Cut Thickness
35mm
