- The built-in air compressor lets you take this machine anywhere
- 20mm clean cuts and 25mm cutting capacity
- The CNC connection means you can use this machine for every kind of plasma application

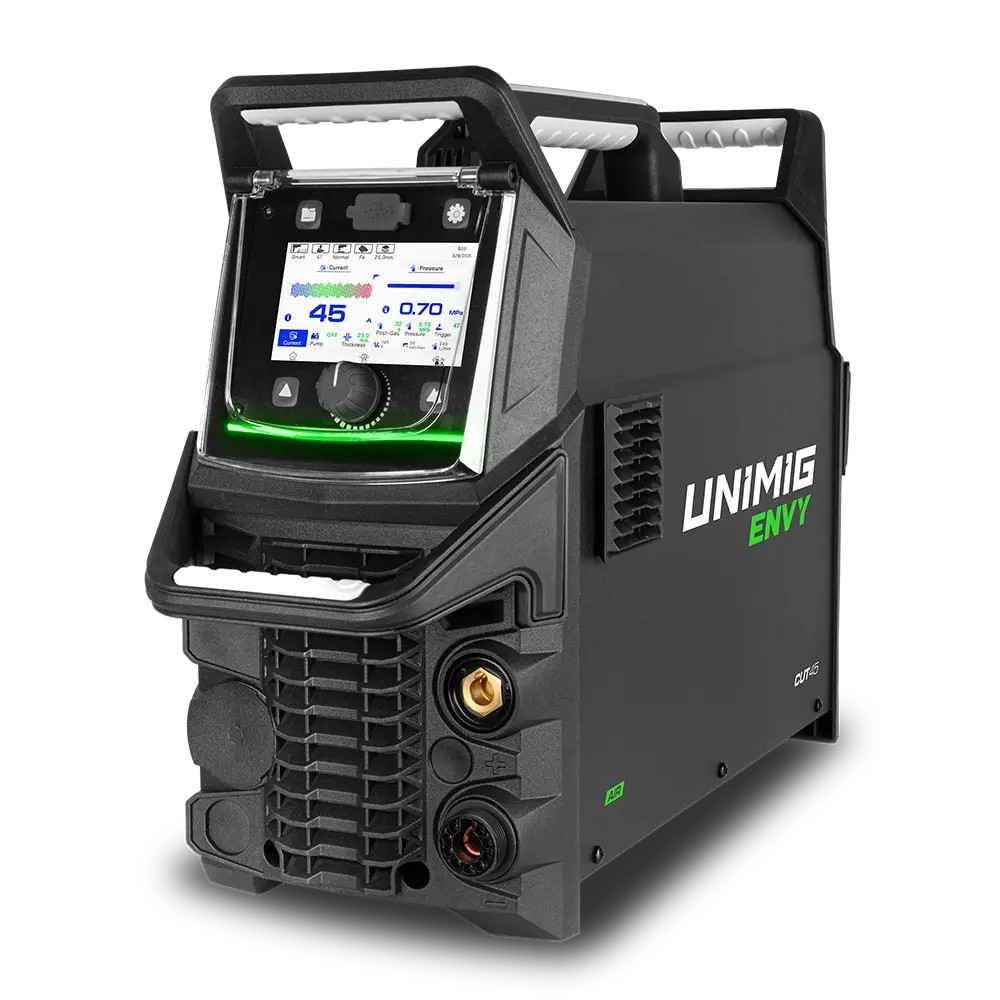

- ENVY CUT 45 AIR Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300A Earth Clamp & Lead
- Operating Manual
Additional Features
Job Memory
The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
Air Test
Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
Ieff (A)
14.5
Imax (A)
26.5
Air Flow Draw (L/min)
190-245
Air Flow Pressure
65.27-87.02 psi
4.5-6.0 bar
0.45-0.6 MPa
Open Circuit Voltage (OCV)
380.0
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Dimensions (LxWxH)
665 x 220 x 425mm
Weight (kg)
23.10
Plasma Cut Current Range
20-45A
Plasma Cut Duty Cycle @ 40°C
30% @ 45A
60% @ 32A
100% @ 25A
Mild Steel Cut Thickness
20mm
Mild Steel Severance Thickness
25mm
Stainless Steel Cut Thickness
18mm
Aluminium Cut Thickness
14mm
Copper Cut Thickness
8mm
