- Single and double pulse MIG programs & high-frequency AC & DC TIG
- MIG & TIG Smart-Set weld modes for complete synergic setups
- Fast, clean cutting with pilot arc start & a 25mm cutting capacity

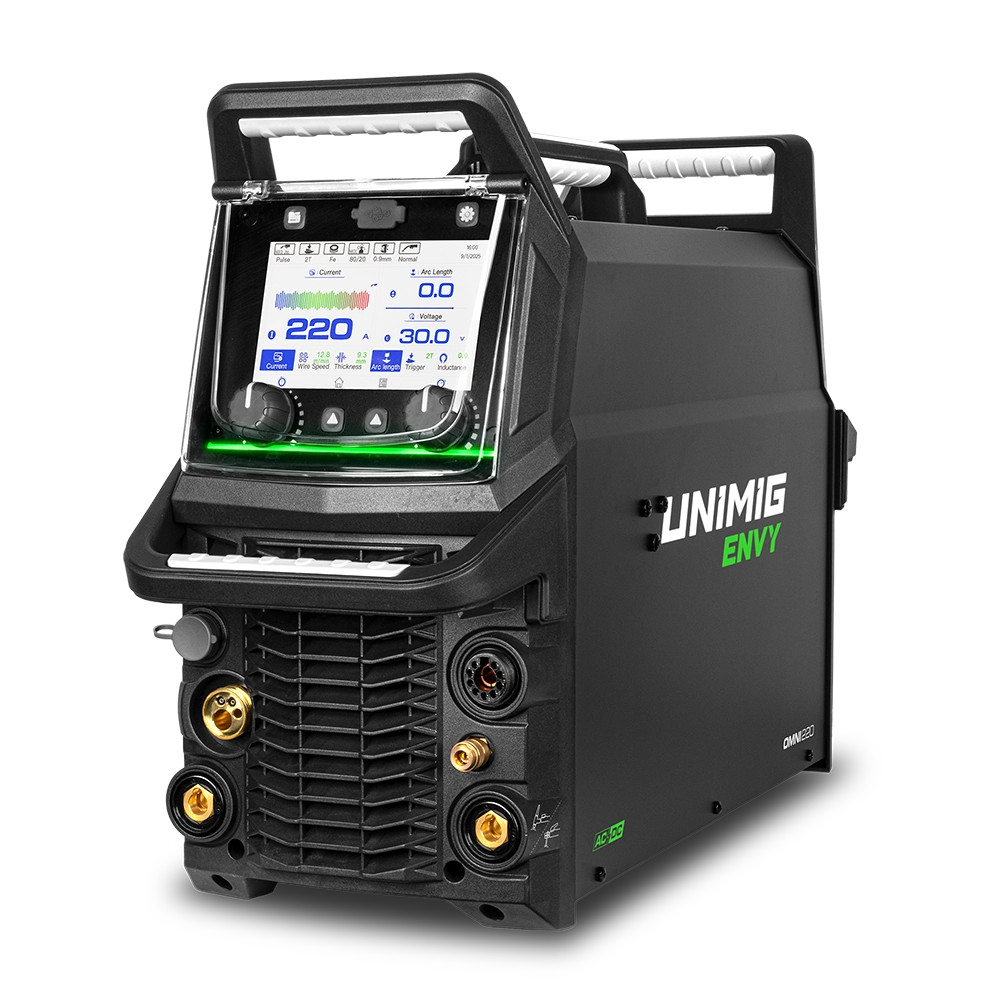

- ENVY OMNI 220 AC/DC Welder
- 3m M26 Digital MIG Torch
- 4m T2 TIG Torch
- 6m SC80 Plasma Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- 2 x Dual Stage Argon Flowmeters
- 2 x 1.8m Quick-Connect Gas Hoses
- Operating Manual
- 4 x 0.8-0.9mm V Groove Roller
- 4 x 0.8-0.9mm F Groove Roller
- 4 x 1.0-1.2mm U Groove Roller
Not All Pulse Machines Are Equal
Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.
A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG.
MIG Smart-Set
Ready to weld with the press of a few buttons. Simply select your joint type, filler wire, gas mixture, and wire diameter, and the machine will choose the ideal settings. If it’s a little off, you can make manual adjustments to finetune every weld.
Ultimate TIG Welding
Weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
TIG Smart-Set
Starting a weld has never been faster with the class-leading synergic TIG. Choose your material, joint type, tungsten diameter, plate thickness, and gas mixture, and you’re off and running. If it’s not quite right, you can tweak the parameters to perfection.
Advanced TIG Programs
The independent amplitude lets you adjust the amperage in both the EP and EN parts of the AC cycle, letting you completely customise the amount of heat directed to the workpiece and the tungsten.
AC and DC Waveform Control
With 12 waveform options available, including AC and DC combinations, you can tailor arc characteristics for different materials, joint types and performance needs.
Cutting Capacity
Get a 20mm clean cut and a severance cut of 25mm on mild steel.
Automatic Polarity Switching
Change weld modes without manual cable swapping. Press the torch trigger and the machine switches to the required polarity automatically, making setup faster and reducing downtime between processes.
Line Resistance Detection
The machine measures and compensates for resistance in your welding cables, ensuring consistent voltage at the arc regardless of cable length or setup changes. This delivers a steadier arc, cleaner bead formation and reduced spatter, especially when working with long extension leads.
Full Size Spool Compatibility
The machine accepts both D200 and D300 spools, giving you the flexibility to run larger 15 kg mild steel reels or 7 kg aluminium reels. Fewer spool changes and longer uninterrupted weld time.
Accessories
Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder.
Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options available.
Digital 4 Geared Wire Feed System
The digital controlled four geared drive delivers strong, even pressure to the wire for smooth and reliable feeding. It handles soft wires like aluminium with ease, reducing birdnesting and removing the need for a spool gun. This gives you cleaner feeding and a steadier arc across all torch lengths.

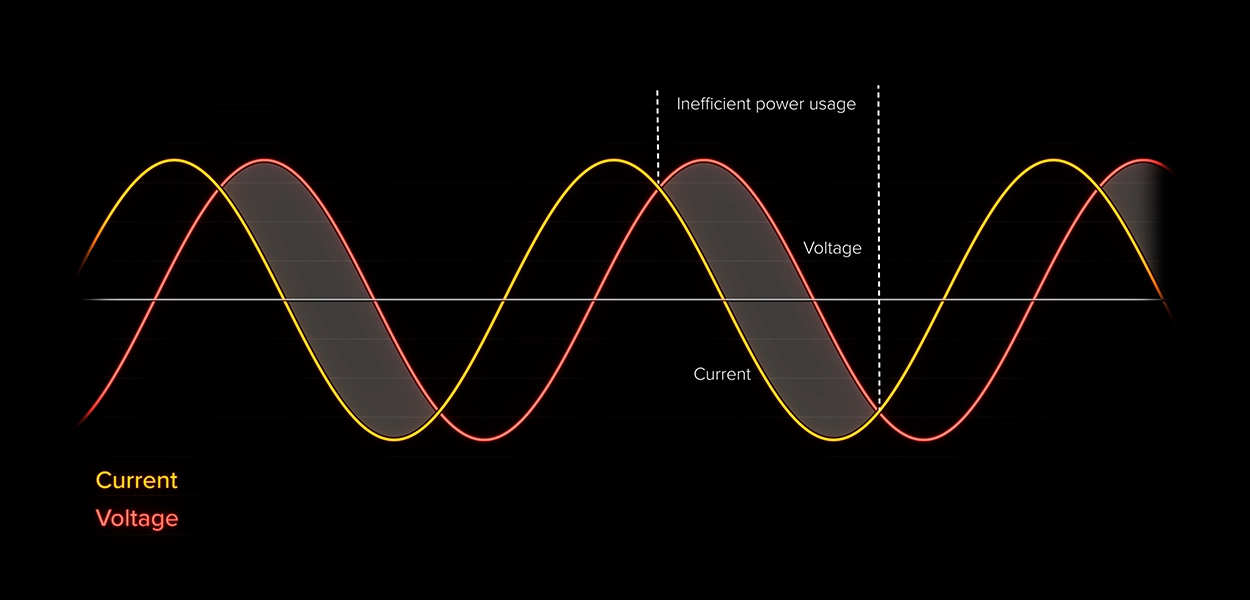

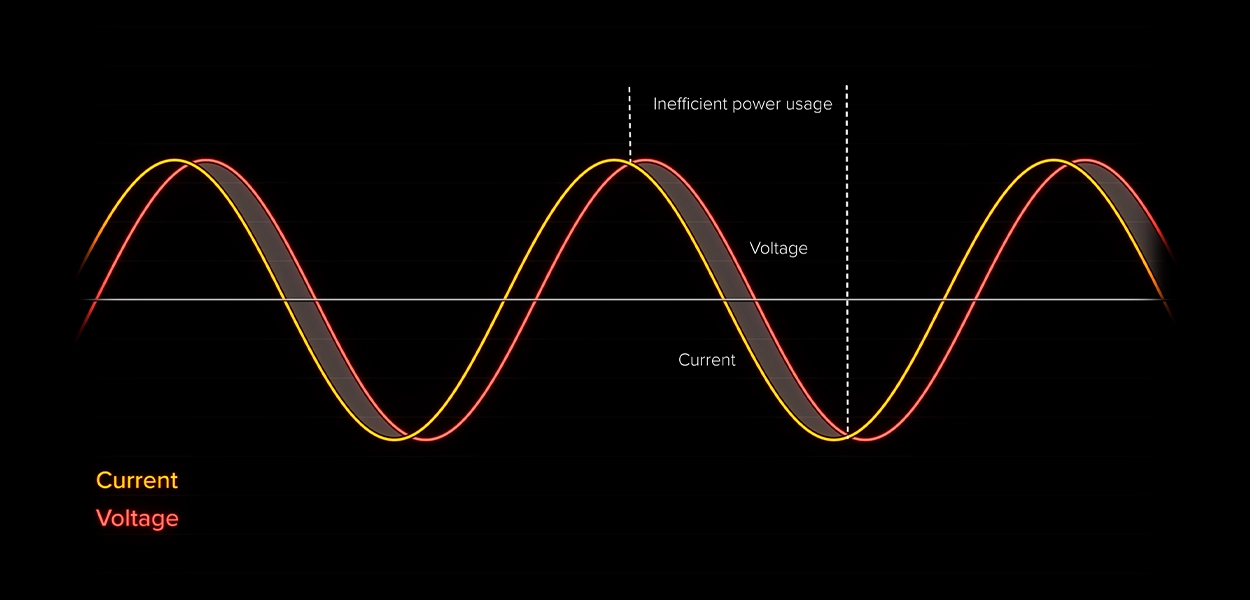

Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
See the difference
Smart Fan Technology
The fan runs only when needed, reducing noise, cutting power use and limiting the dust drawn into the machine. This keeps internal components cleaner and helps extend the overall life of the unimig
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
Revolutionary pulse stick reduces spatter, improves heat control and makes for easier slag removal, as well as improves the speed and efficiency of vertical up welds without sacrificing any root fusion.
Additional Features
Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
Mixed AC/DC
Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
Inductance Control
Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
Burnback Adjustment
Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.
Dual Gas Inputs
Set up for MIG and TIG at the same time. With dual gas inputs for both weld types, you won’t need to swap your gas when you swap torches. The quick connect inputs also make replacing your gas bottle as simple as unplugging and plugging in.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
Pilot Arc Start
Strike the arc without touching the workpiece. Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control on uneven surfaces. Because the tip does not need to drag, your consumables last longer and your starts stay consistent.
Smart-Set Cut Programs
The easiest way to set up for a plasma cut, simply select your cutting type, material type and thickness, and you’re good to go!
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
Ieff (A)
15.0
Imax (A)
32.0
Open Circuit Voltage (OCV)
90.0
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
33.50
Dimensions (LxWxH)
820 x 275 x 520mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
MIG Current Range
25-220A
MIG Duty Cycle @ 40°C
20% @ 220A
60% @ 127A
100% @ 98A
MIG Wire Sizes
0.6-1.2mm
MIG Wire Spool Sizes
5kg (D200)
15kg (D300)
MIG Welding Thickness Range
1-10mm
Drive Roller Size
37/24
TIG Ignition Type
AC/DC High-Frequency
TIG Current Range
5-220A
TIG Duty Cycle @ 40°C
35% @ 220A
60% @ 168A
100% @ 130A
TIG Welding Thickness Range
1-10mm
MMA Current Range
10-200A
MMA Duty Cycle @ 40°C
25% @ 200A
60% @ 129A
100% @ 100A
MMA Electrode Range
2.5-4.0mm
MMA Welding Thickness Range
2-12mm
Plasma Cut Current Range
20-40A
Plasma Cut Duty Cycle @ 40°C
40% @ 40A
60% @ 33A
100% @ 25A
Mild Steel Cut Thickness
20mm
Mild Steel Severance Thickness
25mm
Stainless Steel Cut Thickness
18mm
Aluminium Cut Thickness
14mm
Copper Cut Thickness
8mm
