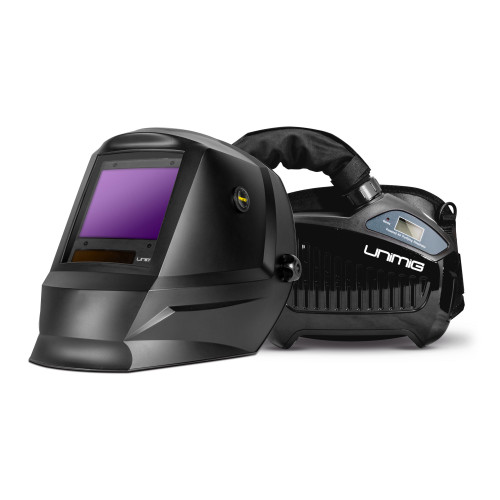

UNIMIG PAPR Welding Helmet - Black

$1,089.00
No reviews yet Write a Review
SKU:
U21014K

The UNIMIG Powered Air Purifying Respirator provides industrial-level protection for the most extreme welding applications and environments where effective and reliable eye and respiratory protection is an absolute must.

Package Includes:

  • Auto-darkening welding helmet
  • PAPR blower unit with attached battery and filter
  • Belt
  • Battery charger
  • Airflow indicator
  • Instruction manual
  • Bag

The 12-volt, 4400MAh lithium-ion battery provides for up to 8 hours use on level 1, 6 hours on level 2, and 4 hours on level 3 airflow setting.

Check out all of the features, and how to set up the PAPR welding helmet on the video below:

Helmet Features

  • 4 ARC SENSORS
  • 100x83.4mm VIEW SIZE
  • 5-13 SHADE CONTROL
  • 99.996%@0.3um FILTER EFFICIENCY:

The powered respirator keeps fresh, clean air pumping around your face so that you can breathe easily while you weld. It has a filter efficiency of 99.996% @ 0.3um, which means that welding fumes, particles and gases are all being filtered to provide you with clean, fresh air.

  • EXTERNAL GRIND BUTTON:

So you can keep it on while you’re grinding, no need to remove your safety gear or fiddle around with flip lens or hoods.

  • UP TO 8 HOURS BATTERY LIFE:

With a built-in 4400mAH lithium-ion battery, it’s quick and easy to recharge with the supplied power adapter. Up to 8 hours of battery life on the lowest intensity settings, you can work an entire shift before it needs to be charged again. Lasts up to 4 hours on the highest intensity setting.

  • ELITEVISION™ LENS TECHNOLOGY:

ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.

  • 1/1/1/1 CLASSIFICATION:

Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/1 classification for optical quality, diffusion of light, light consistency and angle dependence.

  • MEMORY STATES:

The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).



Specifications:

HELMET SPECIFICATIONS

FILTER DIMENSIONS

114x133x9.5mm

VIEW SIZE

100x83.4mm

ARC SENSORS

4

CLASSIFICATION

1/1/1/1

LIGHT STATE

4

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.08ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (1-5 for low-high)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery (ADF)

WARRANTY

2 Years

OPERATING TEMPERATURE

-10ËšC to 65ËšC

STORAGE TEMPERATURE

-20ËšC to 85ËšC

SHADE CONTROL

Yes

GRIND MODE

Yes

STANDARDS

CE EN379, ANSI Z87.1, CSA Z94.3,

REPLACABLE PARTS

OUTER LENS

PUMRBOP

INNER LENS

PUMRWXIP

HARNESS

UMHR

SWEAT BAND

U21009
