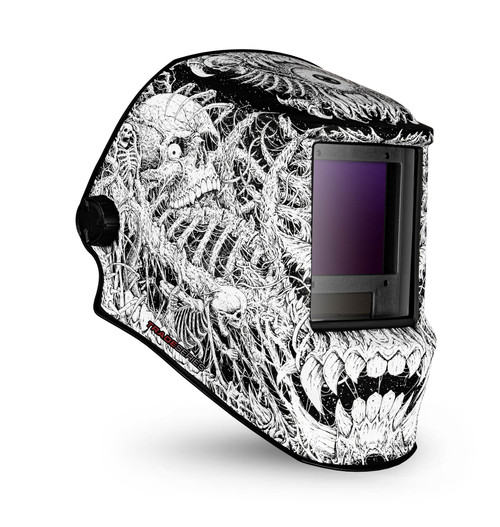

Keep your eyes and face protected during every weld with our Professional Series helmets. Featuring our brand new auto shade detection technology and 5 arc sensors, these helmets take the guesswork out of your shade selection, and the 1/1/1/1 optical classification combined with our largest viewing size lens yet, you’ll be able to see everything you do with crystal-clear clarity. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.
Features & Specifications
Features
1/1/1/1 Classification
Superior optical clarity with a 1/1/1/1 classification. Get
an Auto-Darkening Filter (ADF) that’s scored top marks
across the board for a crystal-clear view of your weld at
every angle.
Auto Shade Select
Take the guesswork out of your protection. The auto
shade select technology instantly detects the arc and
decides what shade you need to keep your eyes safe for
every kind of welding.
102.5x102.5mm View Size
Unmatched visibility in every situation. The 102.5x102.5mm
viewing area lets you see every weld with complete clarity.
3.0 Light State
Get a clear view before and after the weld, as well as
during. With a 3.0 light state, you’ll be able to see your
workpiece as well with the helmet on as with it off.
External Grind Button
Seamlessly switch to grind mode with the click of a
button. When the helmet is in grind mode a small LED
will illuminate, so you don’t need to take the helmet off
to check.
5 Arc Sensors
Detect every arc instantly. The four optimally positioned
arc sensors, coupled with an arc intensity sensor, trigger
the Auto-Darkening Filter. Experience unparalleled eye
protection right from the start of every weld, even when
you’re out of position.
Backup Battery
2 x CR2450 backup batteries improve the performance
and reliability of the auto-darkening filter.
4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all
4 points of contact to suit you, and have the weight spread
more evenly, minimising neck strain.
HELMET SPECIFICATIONS
114x133x9.5mm
102.5x102.5mm
4 Arc Sensors, 1 Arc Intensity Sensor
1/1/1/1
3
5-9 / 9-13
DIN15
0.04ms
0.1-0.9s
Adjustable (1-5 for low-high)
Solar Cells & 2 x CR2450 Replaceable Batteries
3 Years
-10ËšC to 65ËšC
-20ËšC to 85ËšC
Yes
Yes (External)
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
REPLACABLE PARTS
U21023 (Trade Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)
PUMRBOP - Outer Lenses 5pk
PUMRWXIP - Inner Lenses 5pk
U21024
U21025
Magnification Lens
U21010 - 1.5x Magnification Lens
U21011 - 2.0x Magnification Lens
U21012 - 2.5x Magnification Lens
