- A separate wire feeder gives extra manoeuvrability
- Push-Pull gun ready for heavy-duty welding
- 4 geared wire drive system for the smoothest wire feeding experience

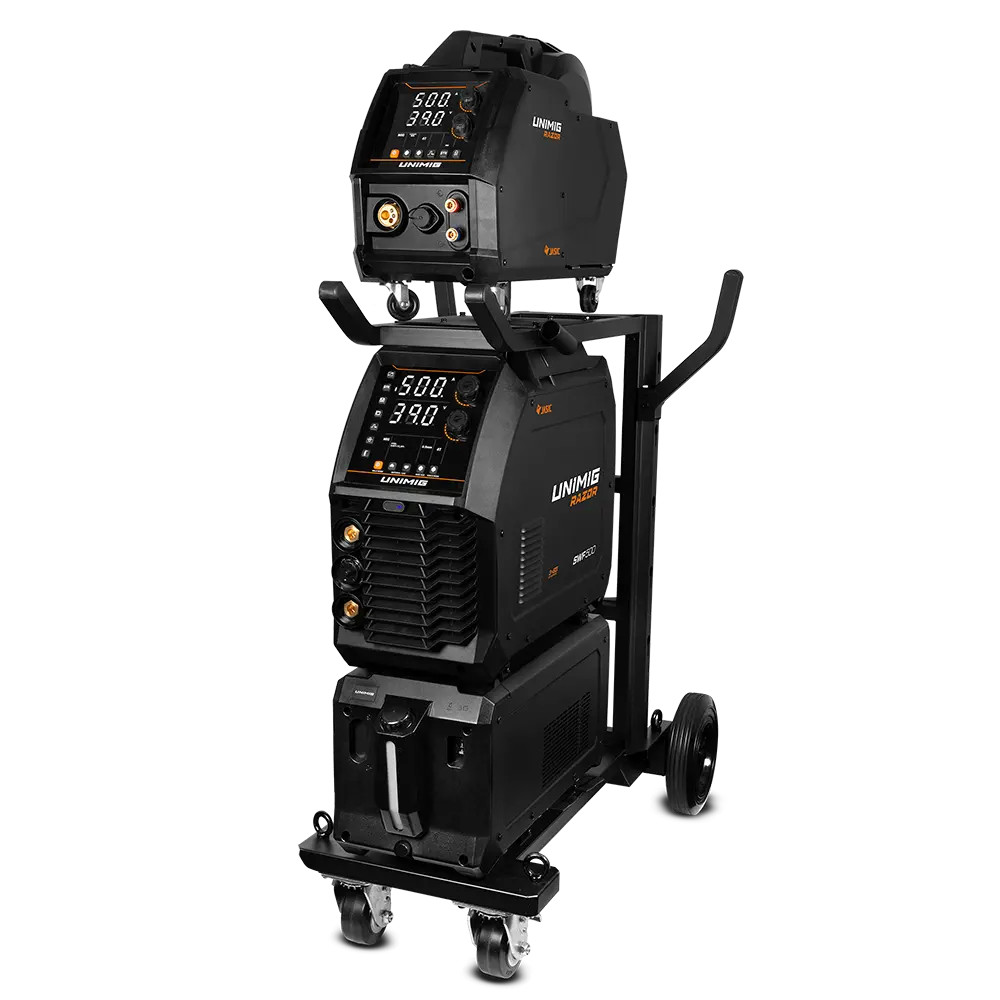

- RAZOR SWF 500 Water-Cooled Welder
- 4m M580 Digital Water-Cooled MIG Torch
- 4m Twist Lock Electrode Holder
- 4m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2 x 0.8-0.9mm V Groove Rollers
- 2 x 1.0-1.2mm V Groove Rollers
- 2 x 0.8-0.9mm F Groove Rollers
- 2 x 1.0-1.2mm F Groove Rollers
- 4 x 1.0-1.2mm U Groove Rollers
Smart-Set MIG
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
Multi-Process
Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.
HD Backlit Interface
This next-generation interface panel is bright and easy to read in any environment.
4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.
Digital Control MIG Torch
Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.
Accessories
Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder.
Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
IP23S
Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
Additional Features
Separate Wire Feeder
Get the ultimate flexibility. The addition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability.
Large Wire Spool Capacity
Fits both D200 and D300 wire spools, so you can put 15kg mild steel or 7kg aluminium spools in the machine.
Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 10 jobs can be memorised and stored for recall.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 40kVA for this machine.
Specifications
Primary Input Voltage
415V Three-Phase
Supply Plug
Unplugged (32A Recommended)
Ieff (A)
22.0
Imax (A)
42.8
Open Circuit Voltage (OCV)
82.0
Open Circuit Voltage with VRD Active (V)
13.0
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
40.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
94.65
Dimensions (LxWxH)
1520 x 520 x 980mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Current Range
30-500A
MIG Duty Cycle @ 40°C
40% @ 500A
60% @ 408A
100% @ 316A
MIG Wire Sizes
0.8-1.6mm
MIG Wire Spool Sizes
5kg (D200)
15kg (D300)
MIG Welding Thickness Range
1-30mm
Drive Roller Size
37/24
TIG Ignition Type
DC Lift Arc
TIG Current Range
20-500A
TIG Duty Cycle @ 40°C
40% @ 500A
60% @ 408A
100% @ 316A
TIG Welding Thickness Range
1-10mm
MMA Current Range
10-500A
MMA Duty Cycle @ 40°C
40% @ 500A
60% @ 408A
100% @ 316A
MMA Electrode Range
2.5-6.0mm
MMA Welding Thickness Range
2-20mm
