- Effortlessly weld any metal with the high-frequency AC/DC TIG
- The ultimate combination of AC and DC with mixed arc settings
- Switch your AC welds to suit your needs with the choice of three waveforms

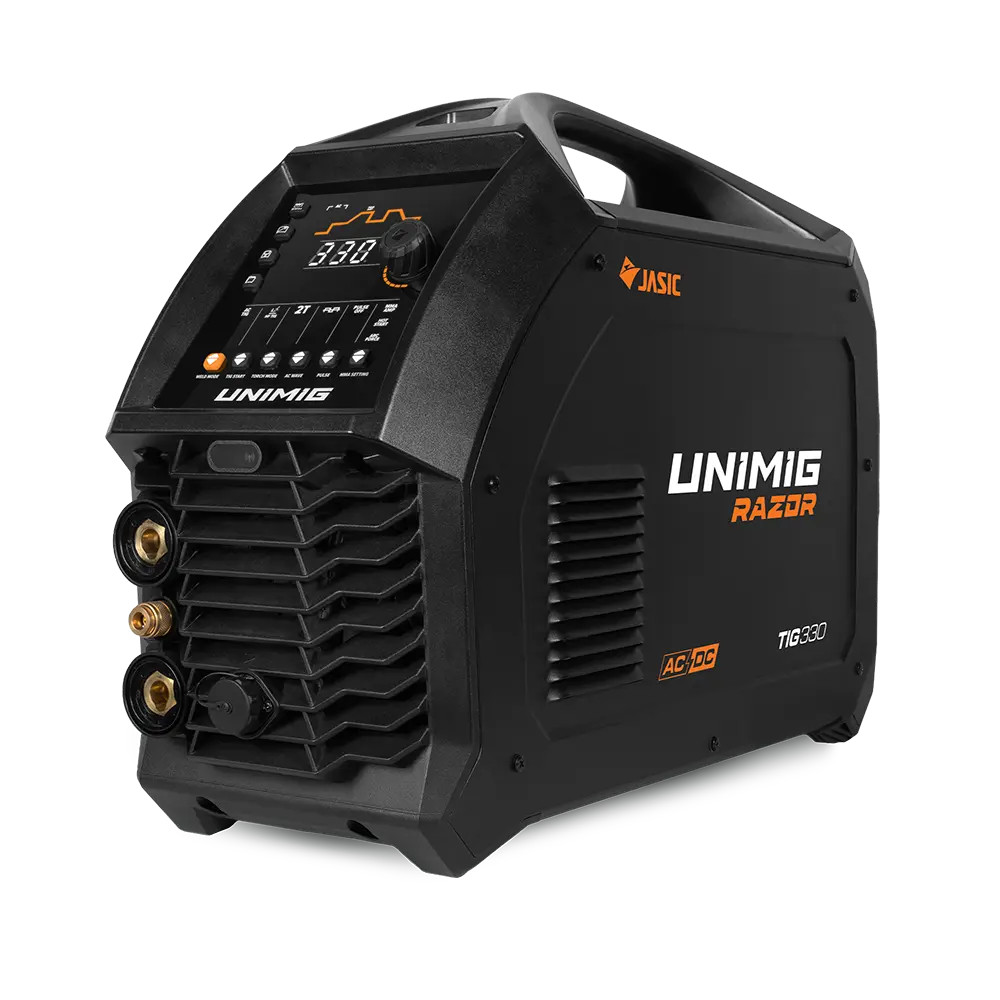

- RAZOR TIG 330 AC/DC Welder
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 2.5m Gas Hose with fittings
- Operating Manual
HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
Ultimate TIG Welding
Weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
Multiple AC Waveforms
Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
The slow, smooth transition between positive and negative provides a consistent weld and good wetting in the toes.
Mixed AC/DC
Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
Foot Pedal Ready
Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options available.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
IP23S
Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
Additional Features
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Lift Arc Start TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Water Cooler Compatible
Get greater performance on every weld. Connect the water cooler unit to remove excessive heat, extending the weld time and the life of your consumables. When combined with the T3W Water-Cooled TIG Torch, which uses Bi-Flow™ Technology, you get greater performance from the TIG torch.
Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 40 jobs can be memorised and stored for recall.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend a 20kVA for this machine.
Specifications
Primary Input Voltage
415V Three-Phase
Supply Plug
Unplugged (32A Recommended)
Ieff (A)
10.0
Imax (A)
17.6
Open Circuit Voltage (OCV)
71.0
Open Circuit Voltage with VRD Active (V)
9.5
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
20.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
23.80
Dimensions (LxWxH)
568 x 230 x 416mm
Suitable Materials
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Ignition Type
AC/DC High-Frequency
AC/DC Lift Arc
TIG Current Range
10-330A
TIG Duty Cycle @ 40°C
30% @ 330A
60% @ 233A
100% @ 181A
TIG Welding Thickness Range
1-16mm
MMA Current Range
10-270A
MMA Duty Cycle @ 40°C
30% @ 270A
60% @ 190A
100% @ 148A
MMA Electrode Range
2.5-4.0mm
MMA Welding Thickness Range
2-16mm
