- Synergic MIG controls for quick and easy weld setups
- 3-in-1 multi-process machine so you can MIG, TIG & STICK
- 10 amp plug, so you can use it with any domestic outlet

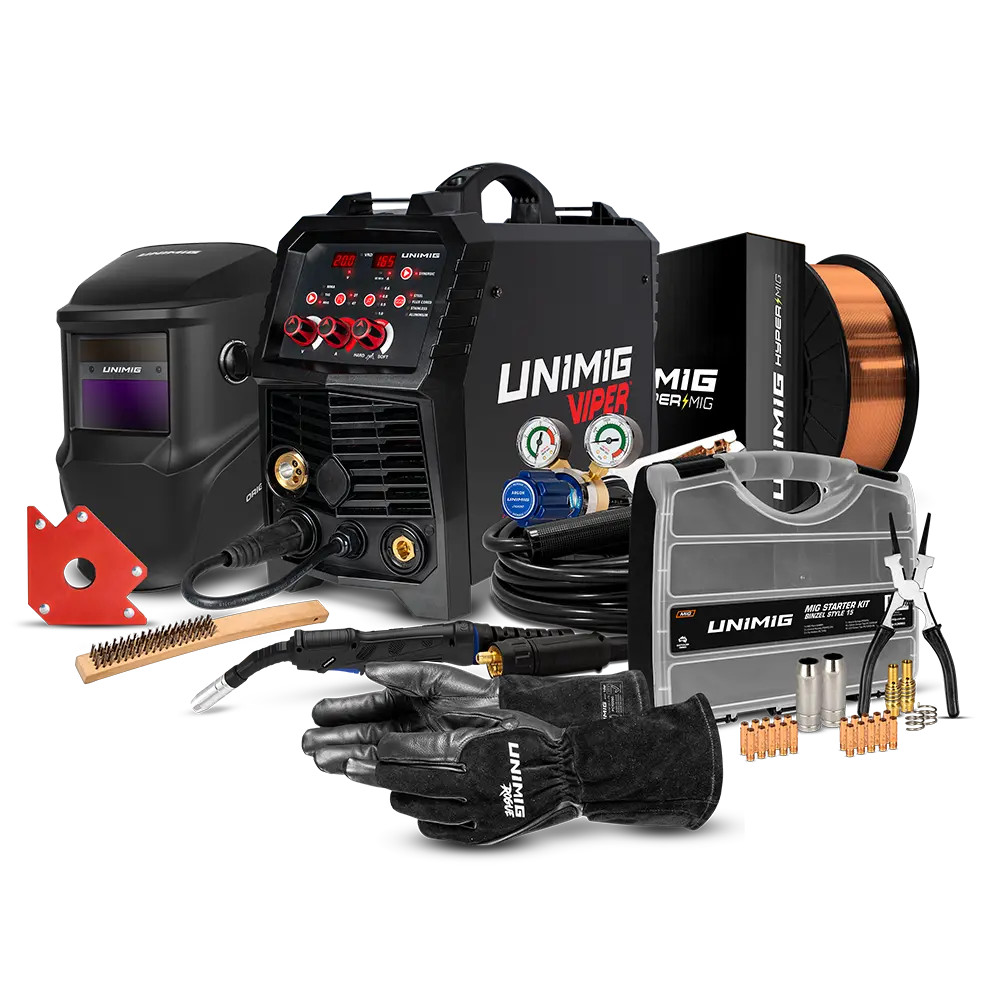

- VIPER MULTI 165 Welder (U11006K)
- Welding Helmet Origin Series - Black (U21033)
- Rogue General Purpose Welding Gloves Model 102 (U22001)
- ER70S-6 Mild Steel Wire 0.8mm 5kg (MS.8B)
- Binzel 15 Style MIG Torch Consumables Starter Kit (UMSK15)
- Magnetic Welding Clamp (UMWM4)
- Wire Brush Stainless Steel 4 Row (WBSS4R)
Specifications
Primary Input Voltage
240V Single-Phase
Power Supply
10A
Ieff (A)
10.0
Imax (A)
31.8
Open Circuit Voltage (OCV)
64.0
Open Circuit Voltage with VRD Active (V)
15.5
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
9.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
2 Years
Weight (kg)
9.80
Dimensions (LxWxH)
513 x 206 x 391mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Current Range
30-165A
MIG Duty Cycle @ 40°C
10% @ 165A
60% @ 68A
100% @ 52A
MIG Wire Sizes
0.6-0.9mm
MIG Wire Spool Sizes
1kg (D100)
5kg (D200)
MIG Welding Thickness Range
1-8mm
Drive Roller Size
30/10
TIG Ignition Type
DC Lift Arc
TIG Current Range
20-160A
TIG Duty Cycle @ 40°C
10% @ 160A
60% @ 65A
100% @ 50A
TIG Welding Thickness Range
1-6mm
MMA Current Range
20-140A
MMA Duty Cycle @ 40°C
10% @ 140A
60% @ 58A
100% @ 45A
MMA Electrode Range
2.5-3.2mm
MMA Welding Thickness Range
2-8mm
