- Single pulse MIG programs & high-frequency DC TIG
- MIG Smart-Set weld modes for complete synergic setups
- 10 amp plug, so you can use it with any domestic outlet

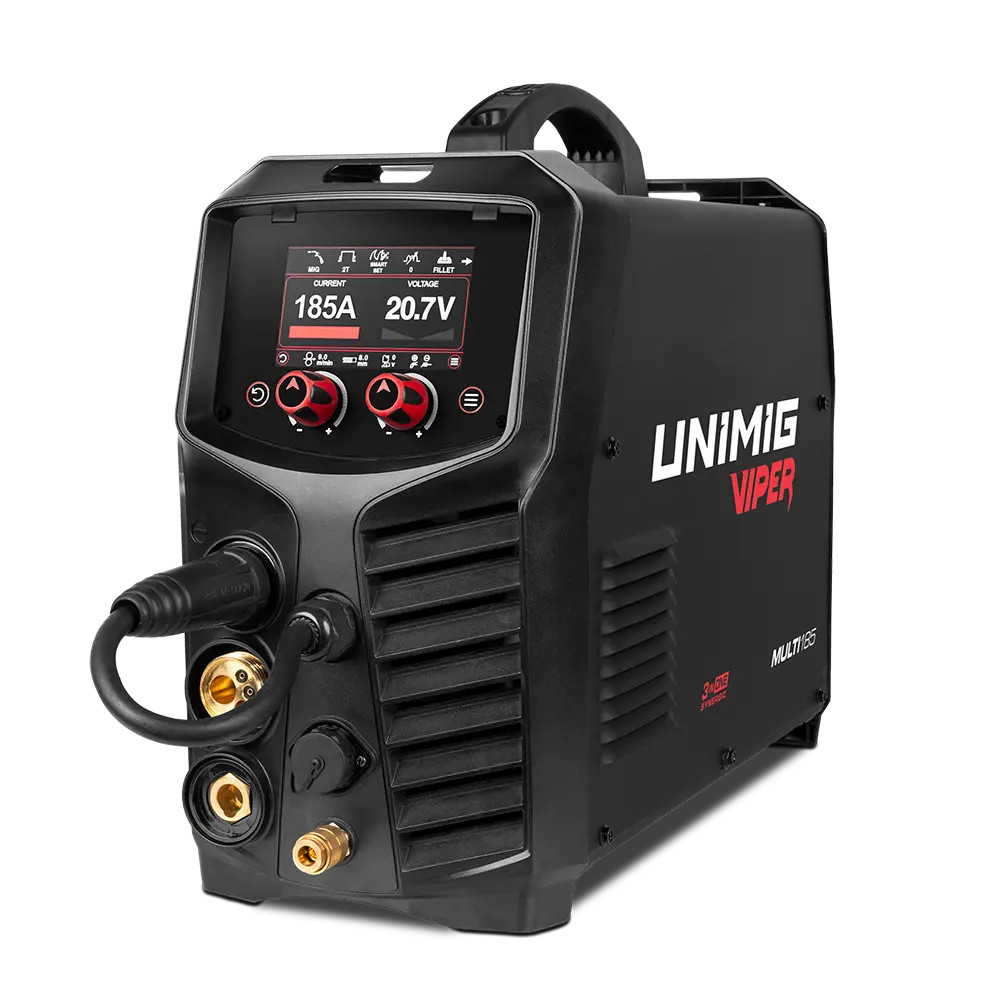

- VIPER MULTI 185 Welder
- 3m M26 MIG Torch
- 3m Twist Lock Electrode Holder
- 3m 300 Amp Earth Clamp & Lead
- Argon Regulator
- 1.8m Quick-Connect Gas Hose
- 9-to-9 Pin TIG Torch Adapter
- Operating Manual
- 0.8-0.9mm V Groove Roller
- 0.8-0.9mm F Groove Roller
- 1.0-1.2mm U Groove Roller
Additional Features
Job Memory
The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 10 jobs can be memorised and stored for recall.
Adjustable Arc Length
Get absolute precision on your settings. The adjustable arc length allows you to increase or decrease the preselected voltage while in synergic and pulse MIG modes.
Inductance Control
Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
Burnback Adjustment
Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
Lightweight & Portable
Weighing just 13.5kg, you can take this machine with you anywhere.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
10A
Ieff (A)
10.0
Imax (A)
31.0
Open Circuit Voltage (OCV)
67.0
Open Circuit Voltage with VRD Active (V)
11.0
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
3 Years
Weight (kg)
13.50
Dimensions (LxWxH)
523 x 214 x 388mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
MIG Current Range
30-185A
MIG Duty Cycle @ 40°C
10% @ 185A
60% @ 77A
100% @ 60A
MIG Wire Sizes
0.6-1.0mm
MIG Wire Spool Sizes
1kg (D100)
5kg (D200)
MIG Welding Thickness Range
1-10mm
Drive Roller Size
30/22
TIG Ignition Type
DC High-Frequency TIG
DC Lift Arc
TIG Current Range
20-185A
TIG Duty Cycle @ 40°C
10% @ 185A
60% @ 77A
100% @ 60A
TIG Welding Thickness Range
1-6mm
MMA Current Range
20-180A
MMA Duty Cycle @ 40°C
10% @ 185A
60% @ 75A
100% @ 60A
MMA Electrode Range
2.5-4.0mm
MMA Welding Thickness Range
2-10mm
