A high-performance 210A AC/DC TIG welding inverter designed for clean, precise welds across aluminium and steel. With 11 selectable arc waveforms, AUTOSET with plate thickness control, and High Frequency Start for contamination-free arc initiation, it delivers consistent, high-quality results. Built with Power Factor Correction (PFC) for stable operation on a 15A plug, and supported by Stick and Stick Pulse modes for added flexibility, the XF210 AC/DC is engineered for control, efficiency, and reliability.
PRECISION TIG. TOTAL CONTROL.
Select from multiple arc waveforms to fine-tune weld characteristics and achieve consistent, high-quality TIG results.
START CLEAN. PROTECT YOUR WELD.
High Frequency Start (HF) Initiate the arc without contact to avoid tungsten and weld contamination while improving arc consistency.
GUIDED SETUP. FASTER WELDING.
AUTOSET + Plate Thickness Settings Simplify setup with guided parameters based on material thickness and joint type, reducing setup time and improving accuracy.
POWER EFFICIENT. STABLE OUTPUT.
15A Input + Power Factor Correction (PFC) Operate from a standard 15A outlet with improved efficiency and stable performance, even when using extension leads.
SAVE TIME. WELD SMARTER.
Set up faster, save your settings, and switch jobs instantly. The 5" full-colour LCD with 60 memory slots cuts setup time and removes guesswork on repeat work.
BUILT FOR PRECISION. POWERED FOR PERFORMANCE.
MORE FLEXIBILITY. MORE APPLICATIONS.
Switch between TIG and Stick processes, including Stick Pulse, to handle a wider range of welding environments and material conditions.
IMPROVED EFFICIENY. BETTER CONSISTENCY
Store and recall welding parameters instantly to suit different jobs reducing setup time and ensuring consistency across repeat work.

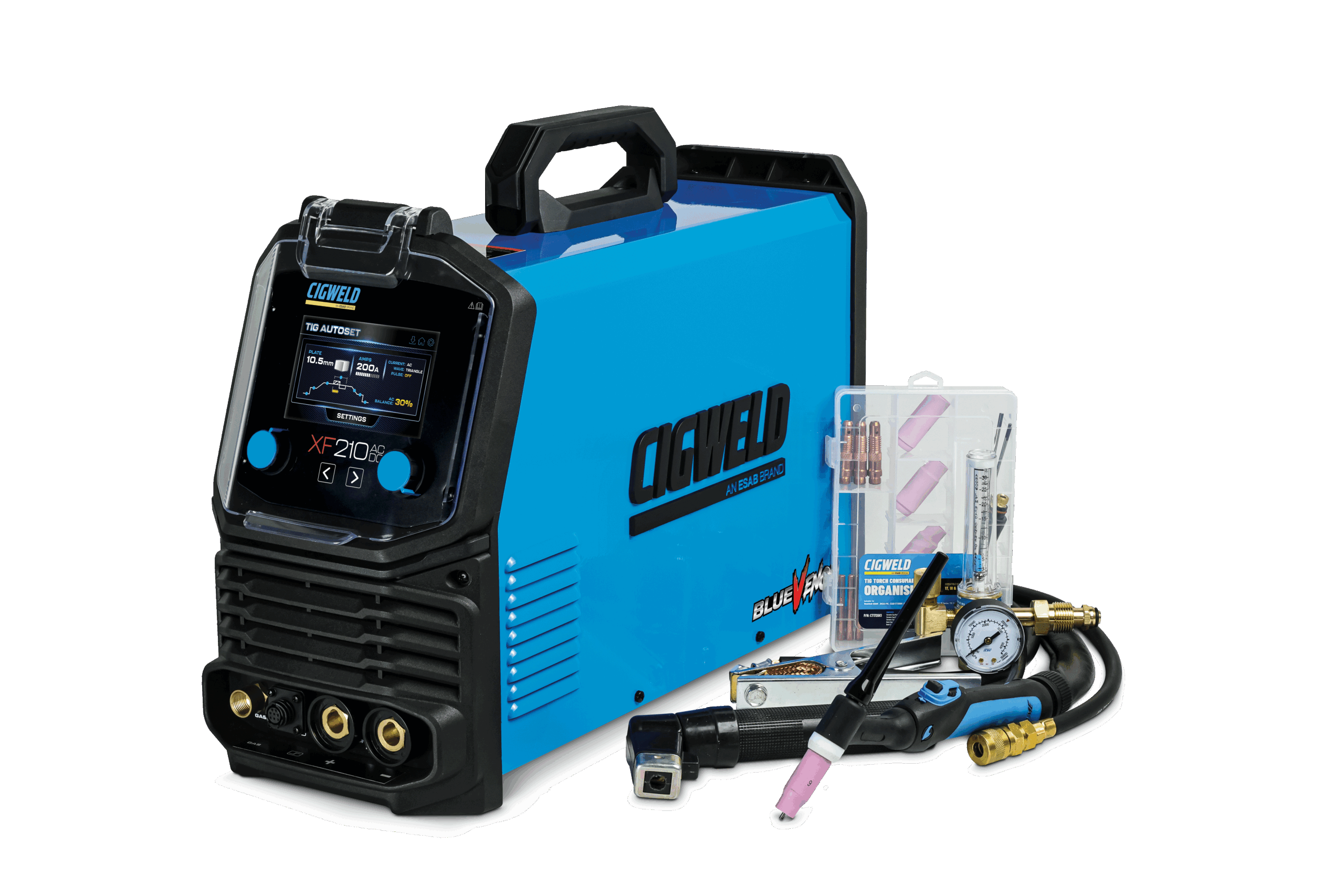

What's Included?
BlueVenom XF210 AC/DC Precision TIG Welding with Advanced Control
BlueVenom XF210 AC/DC Power Source
4m Flame Series WP26F Flex Head TIG Torch
Flame Series WP26F Flex Head TIG Torch, 4m
200A Twist Lock Electrode Holder with 4m Lead
Feed Rolls (V-Groove, Knurled, U-Groove)
300A Earth Clamp, 3m
BlueJet Regulator/Flowmeter
Quick Connect Gas Hose, 3m
3-Year Conditional Warranty
Specifications
| Brand | Cigweld | Power Supply | Single Phase, 230V +/- 10% (15A Plug) |
| Welding Process | AC TIG, AC+DC TIG, Cold Weld TIG, DC TIG, STICK, STICK PULSE, TIG | Usage | Industrial, Professional |
| Material Type | Mild Steel, Aluminium, Bronze, Stainless Steel | Pulse Capable | Yes |
| Warranty | 3 Year Limited Warranty Refer to operating manual for details | Generator Requirement | 8.0 kVA (0.8 Power Factor at Max Amps) |
| Cooling Type | Fan Cooled | Package Dimensions | 670 (L) x 345 (W) x 425 (H) |
| Standards | AS 60974.1:2020 | Nominal Supply Frequency | 50/60 Hz |
| Welding Current Range (Stick Mode) | 40A - 185A | Welding Current Range (TIG Mode) | 10A - 210A |
| Voltage Reduction Device (VRD) | Yes on Stick Mode (<35V) | Protection Class | IP23S |
| Duty Cycle TIG | 210A @ 40%, 18.4V (at 40C°) | Duty Cycle STICK | 185A @ 25%, 27.4V (at 40C°) |
| Weight Package | 27.2kg | Weight Power Source | 17.2kg |
