PORTABLE
The machine weighs just 2kg ensuring ease of portability.

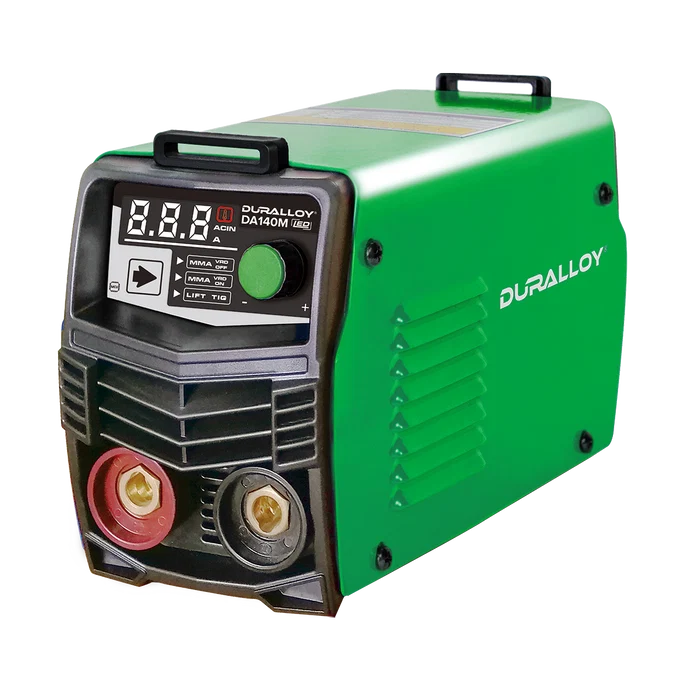

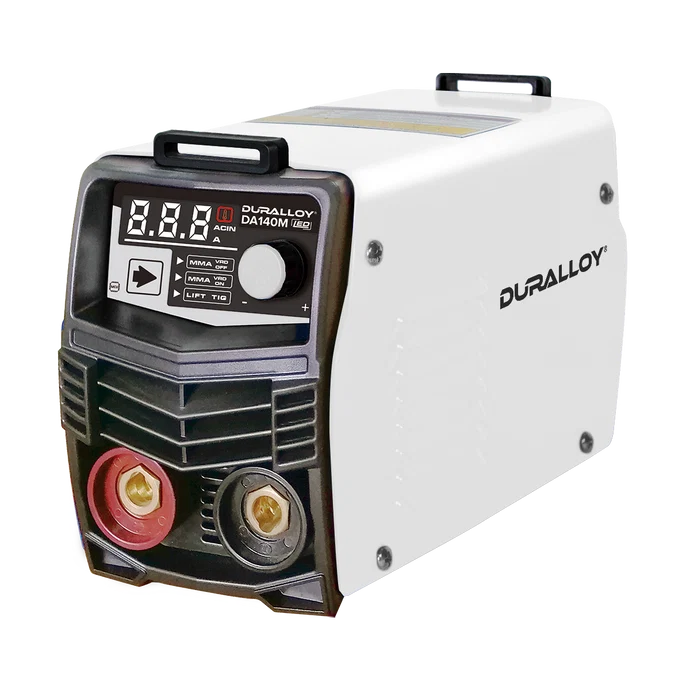

DIGITAL DISPLAY
Variable amperage control with digital meter.
PROTECTIONS
Equipped with temperature, voltage and current sensors for greater protection.
FEATURES
- Highly portable
- 10 Amp primary plug
- IP21S rating
- Arc Force, Hot Start, Anti Stick & VRD all built-in
- MMA & LIFT TIG functions
- Exceptional smooth Arc characteristics
APPLICATIONS
- Farm & rural maintenance
- Portable on-site repair & maintenance
- Stainless steel fabrication
MATERIALS
- Mild Steel
- Stainless steel
- Cast Iron
- Dissimilar metals
PACKAGE INCLUDES
- Power Source
- MMA Earth Lead & Clamp
- MMA Arc Lead & Holder
- Owner’s Manual
| SPECIFICATIONS | |||
|---|---|---|---|
| Power Supply | 240V | ||
| Supply Plug | 15 Amp | ||
| Frequency | 50/60Hz | ||
| 240V ± 10% | |||
| MIG | MMA | TIG | |
| Input Current | 31/12A | 36/14A | 23/11A |
| Duty Cycle 40oC 10min |
180A 15% 90A 60% 70A 100% |
180A 15% 90A 60% 70A 100% |
180A 25% 90A 60% 70A 100% |
| No Load Voltage | 64V | ||
| Welding Current | 30A - 180A | ||
| Welding Voltage | 15.5V - 23V | ||
| Efficiency | 77% | ||
| Power Factor | 0.73 | ||
| Wire Diameter | Fe: 0.8 - 0.9 SS: 0.8-0.9 Flux-Cored: 0.8 -0.9 AL: 1.0 -1.2 |
||
| Net Weight | 12.2kg | ||
| Dimensions | 520mm x 215mm x 385mm | ||
| Insulation Class | H | ||
| Protection Class | IP21S | ||
| Cooling | Auto Fan |
