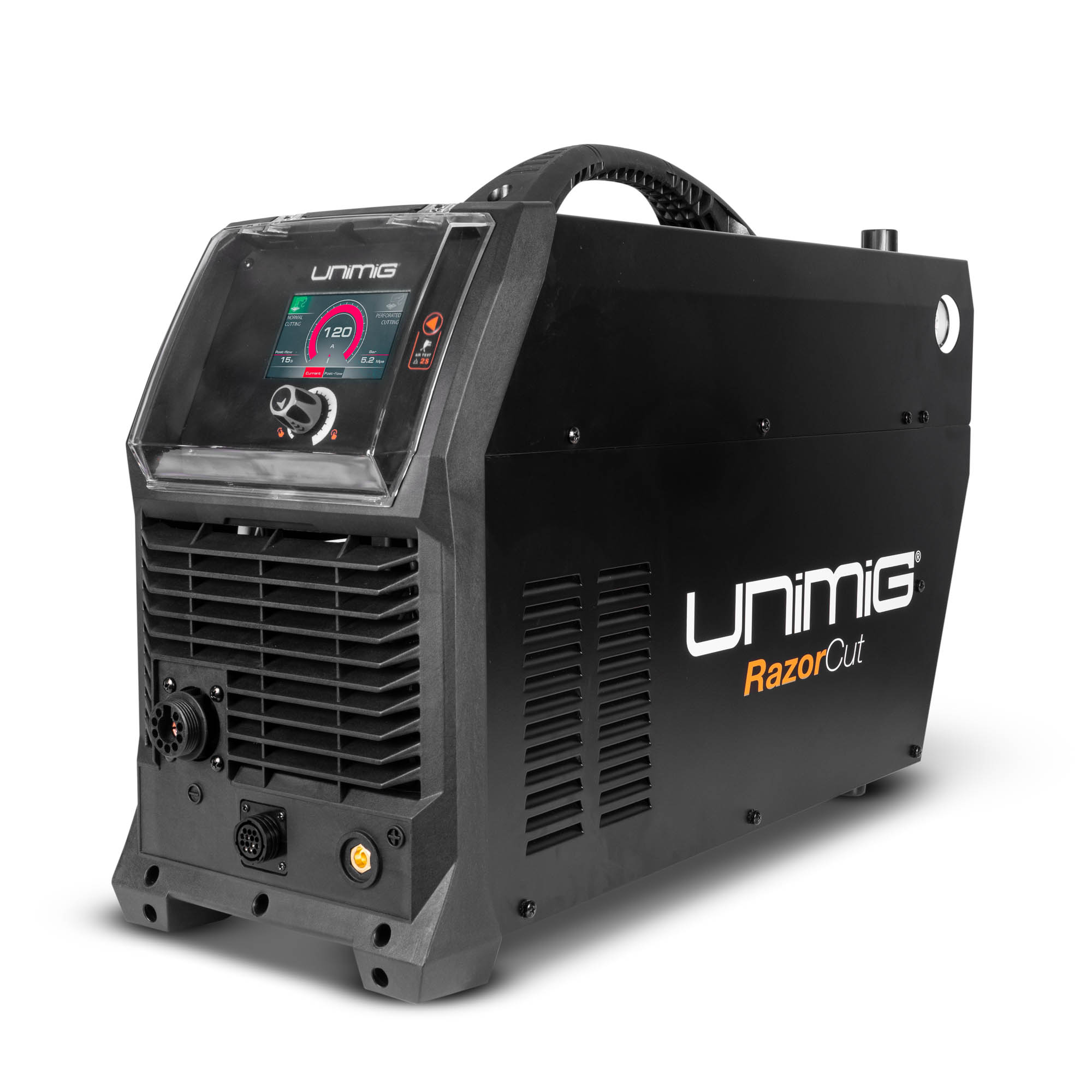

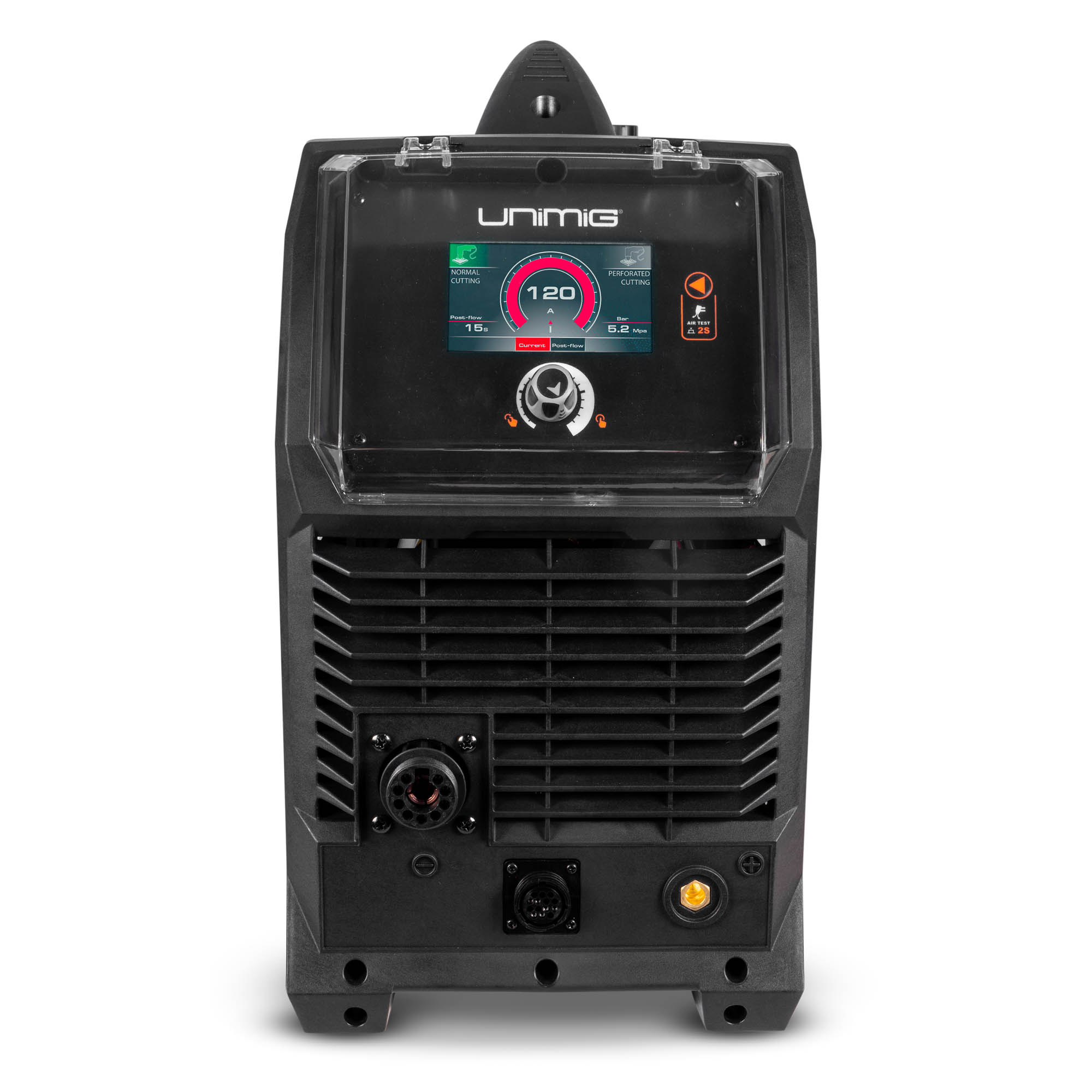

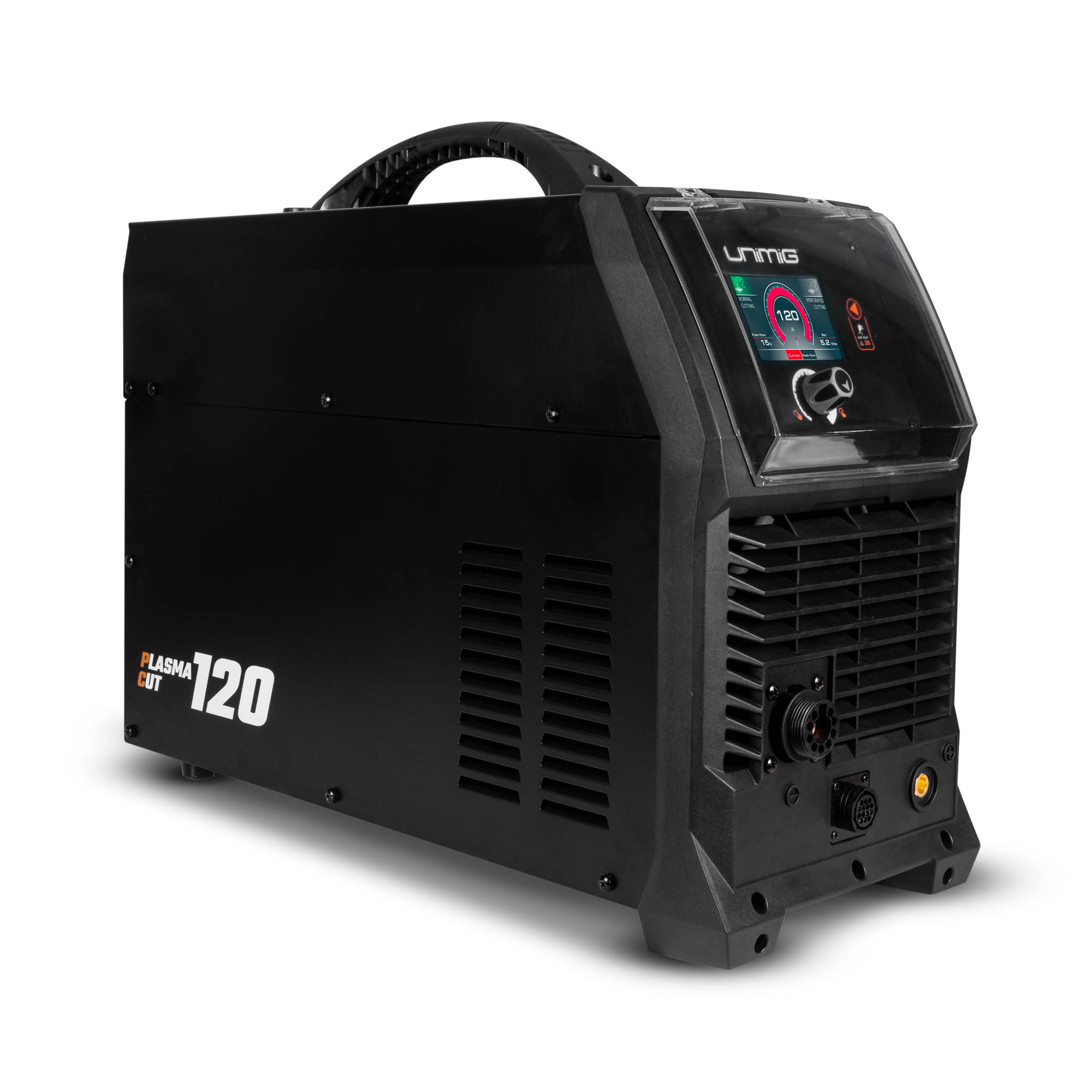

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.
Package Contents:
- RAZOR™ CUT 120 Plasma Cutter
- 6m SC120 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
Features:
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
- PRIMARY INPUT VOLTAGE:
- 415V Three Phase
- SUPPLY PLUG:
- No plug supplied (32 AMP Recommended)
- Ieff (A):
- 26.0
- NO LOAD VOLTAGE (V):
- 420
- PROTECTION CLASS:
- IP21
- INSULATION CLASS:
- F
- DINSE CONNECTOR:
- 10/25
- STANDARD:
- AS/NZ60974-1
- WARRANTY (Years):
- 3
- WEIGHT (kg):
- 24kg
- THERMAL OVERLOAD PROTECTION:
- Over Temperature Warning
- PLASMA CUT CURRENT RANGE:
- 20-120A
- PLASMA CUT DUTY CYCLE @ 40°C:
- 60% @ 120A, 100% @ 100A
- MILD STEEL CUT THICKNESS:
- 45mm
- MILD STEEL SEVERANCE THICKNESS:
- 60mm
- ALUMINIUM CUT THICKNESS:
- 36mm
- STAINLESS STEEL CUT THICKNESS:
- 45mm
- AIR FLOW DRAW OFF (L/min):
- 189
- AIR FLOW PRESSURE (Bar):
- 5.17 (75 psi)
- PLASMA ARC START:
- Pilot Arc
