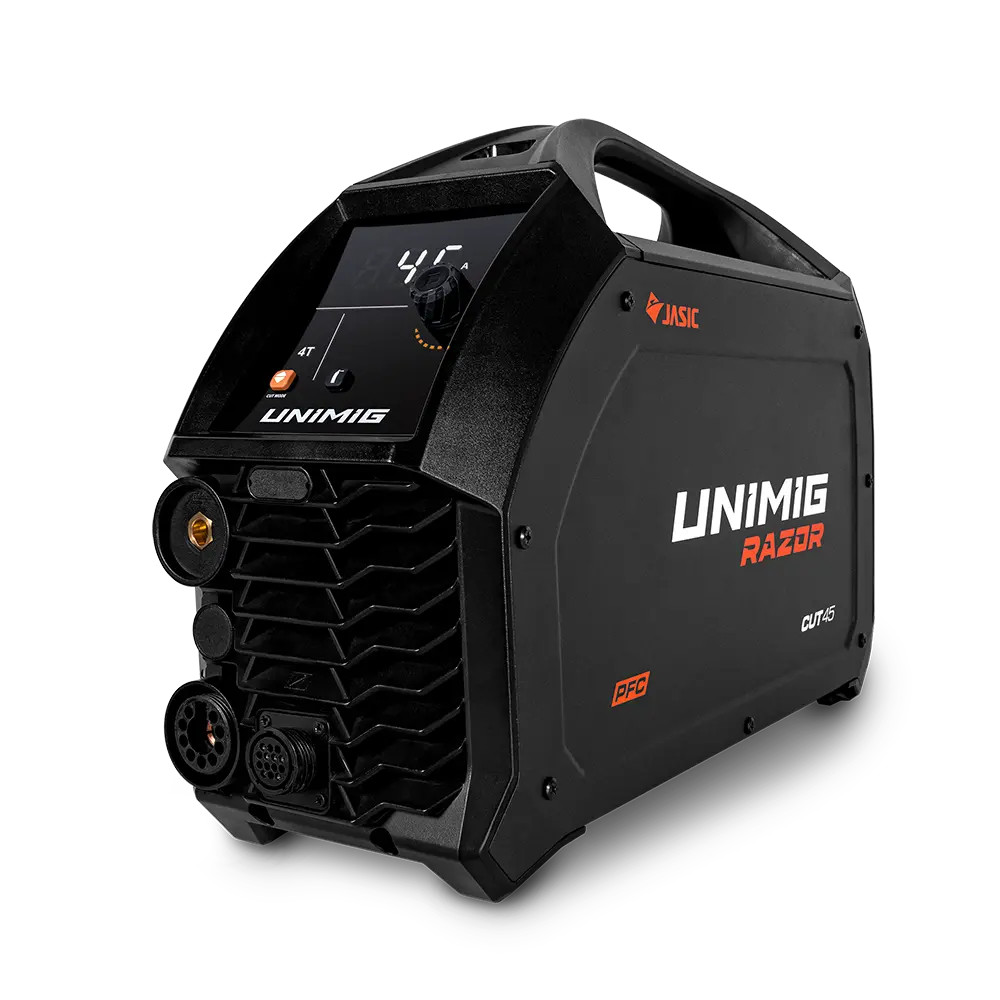

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.
Package Includes
- RAZOR™ CUT 45 Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
Specifications
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
15 AMP
RATED INPUT POWER (kVA)
5.5
RATED OUTPUT
98V
PROTECTION CLASS
IP21S
INSULATION CLASS
F
MINIMUM GENERATOR (kVA)
10.0
DINSE CONNECTOR
10/25
STANDARD
AS/NZ60974-1
WARRANTY (Years)
3
SIZE & WEIGHT
DIMENSIONS (mm)
410x165x330mm
WEIGHT (kg)
9.8kg
PLASMA CUT SPECIFICATIONS
PLASMA CUT CURRENT RANGE
20-45A
PLASMA CUT DUTY CYCLE @ 40°C
25% @ 45A
MILD STEEL CUT THICKNESS
16mm
MILD STEEL SEVERANCE THICKNESS
20mm
ALUMINIUM CUT THICKNESS
8mm
ALUMINIUM SEVERANCE THICKNESS
10mm
STAINLESS STEEL CUT THICKNESS
8mm
STAINLESS STEEL SEVERANCE THICKNESS
10mm
AIR FLOW DRAW OFF (L/min)
189
AIR FLOW PRESSURE (Bar)
5.17 (75 psi)
PLASMA ARC START
Pilot Arc
