Bundle Contents:
- RAZOR CUT 45 Plasma Cutter
- SC80 Consumable Starter Kit
- Welding Helmet Trade Series - Black
Includes:

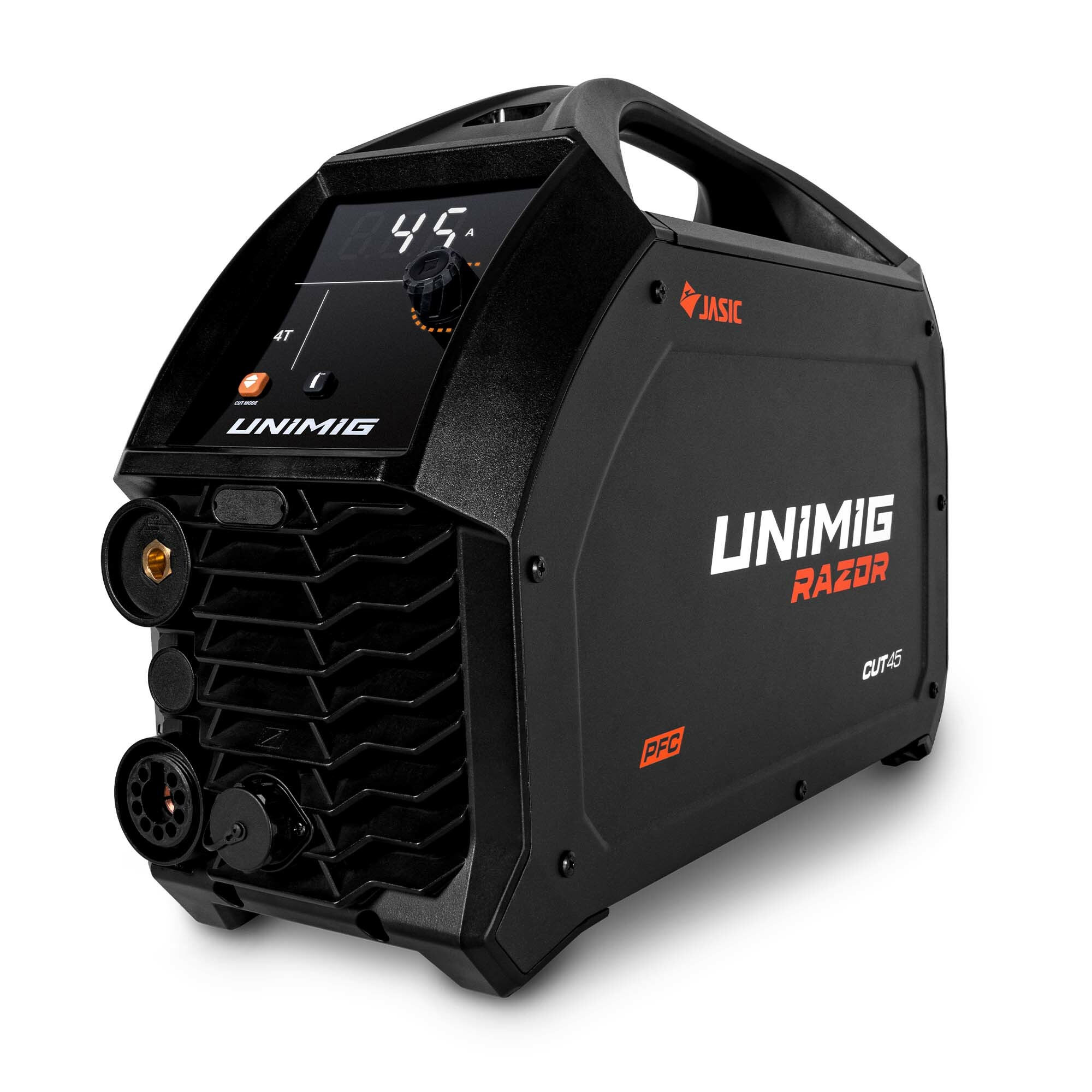

RAZOR CUT 45 Plasma Cutter
The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.
Package Includes:
- RAZOR™ CUT 45 Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
SC80 Consumable Starter Kit
Packaged in a sturdy carry case, the SC80 Plasma Torch Consumable Starter kit is the perfect companion to be bundled alongside machines, with the kit containing all the essential consumables.
CONTENTS:
- 1 x Swirl Ring (SC8006)
- 1 x Retaining Cap (SC8030)
- 5 x Electrodes (PSC8004)
- 5 x 1.3mm Cutting Tips (PSC8020-13)
- 5 x 1.0mm Cutting Tips (PSC8020-10)
- 1 x Stand Off Guide (SC8040)
- 1 x Cutting Buggy (SC8051)
UNIMIG Trade Series Welding Helmet - Black
Keep your eyes and face protected during every weld with our Trade Series welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.
Specifications
Helmet Specifications
Filter Dimensions
114x133x9.5mm
View Size
100x83.4mm
Arc Sensors
4
Classification
1/1/1/1
Light State
4
Dark State
5-13
UV/IR Protection
DIN15
Time from Light to Dark
0.04ms
Time from Dark to Light
0.1-0.9s
Sensitivity Delay
Adjustable (1-5 for low-high)
Power Supply
Solar Cells & CR2450 Replaceable Battery
Warranty
3 Years
Operating Temperature
-10˚C to 65˚C
Storage Temperature
-20˚C to 85˚C
Shade Control
Yes
Grind Mode
Yes (External)
Minimum TIG Amperage
3A
Standards
AS/NZS 1337.1 B (High Impact)
AS/NZS 1338.1 (Auto-Darkening)
Replaceable Parts
Trade Series Welding Helmet Lens Kit
U21023
4 Point Harness
U21024
4 Point Harness Sweatband & Back Pad
U21025
Magnification Lens
U21010 - 1.5x Magnification Lens
U21011 - 2.0x Magnification Lens
U21012 - 2.5x Magnification Lens
- PRIMARY INPUT VOLTAGE:
- 240V Single Phase
- SUPPLY PLUG:
- 15 AMP
- Ieff (A):
- 13.5
- NO LOAD VOLTAGE (V):
- 300
- PROTECTION CLASS:
- IP23S
- INSULATION CLASS:
- H
- MINIMUM GENERATOR (kVA):
- 8
- DINSE CONNECTOR:
- 10/25
- STANDARD:
- AS/NZS 60974.1
- WARRANTY:
- 5 Years
- PLASMA CUT CURRENT RANGE:
- 20-45A
- PLASMA CUT DUTY CYCLE @ 40°C:
- 25% @ 45A, 60% @ 30A, 100% @ 20A
- MILD STEEL CUT THICKNESS:
- 16mm
- MILD STEEL SEVERANCE THICKNESS:
- 25mm
- ALUMINIUM CUT THICKNESS:
- 8mm
- ALUMINIUM SEVERANCE THICKNESS:
- 12mm
- STAINLESS STEEL CUT THICKNESS:
- 8mm
- STAINLESS STEEL SEVERANCE THICKNESS:
- 12mm
- AIR FLOW DRAW OFF (L/min):
- 189
- AIR FLOW PRESSURE (Bar):
- 5.17 (75 psi)
- PLASMA ARC START:
- Pilot Arc
- DIMENSIONS (mm):
- 546×169×341mm
- WEIGHT (kg):
- 10kg
