- 30mm clean cuts and 35mm cutting capacity
- The CNC connection means you can use this machine for every kind of plasma application
- Cut anything with the perforated cut mode

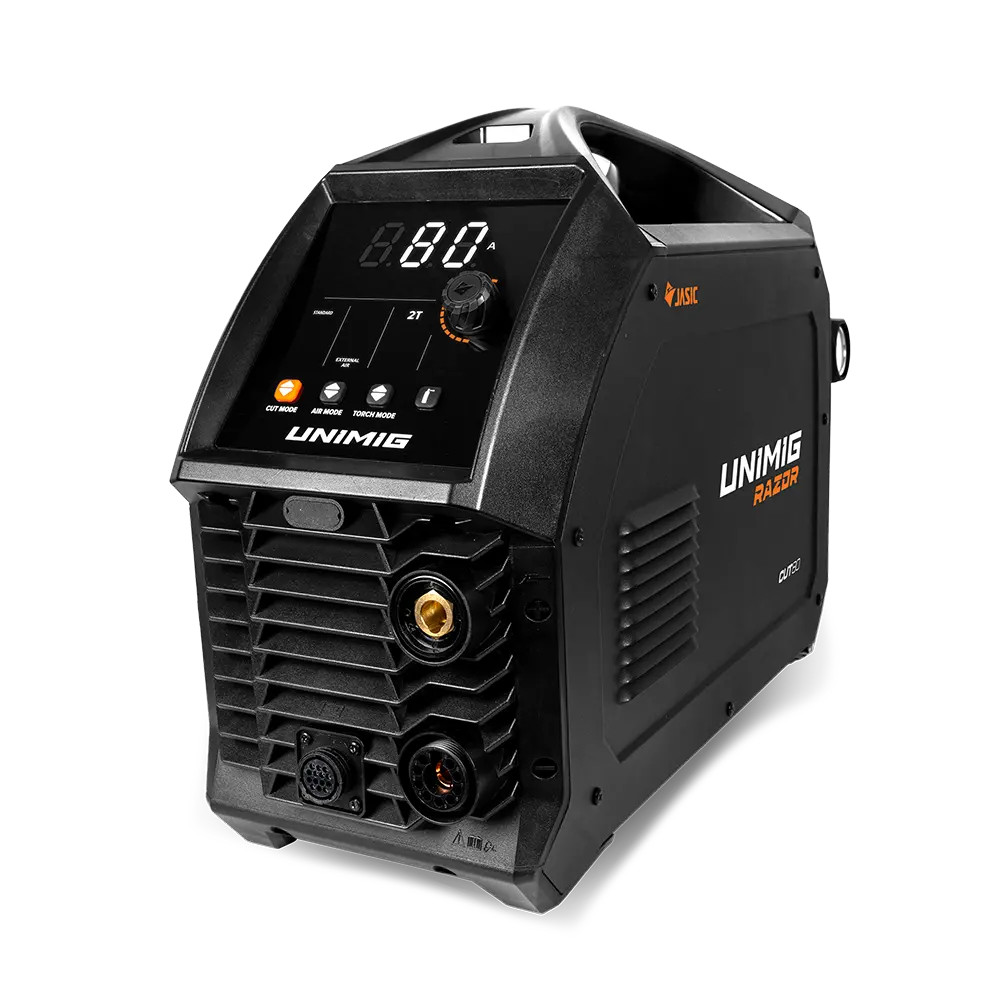

- RAZOR CUT 80
- 6m SC80 Plasma Torch
- 3m 300A Earth Clamp
- Air Regulator
- Operating Manual
Additional Features
Optional Air Compressor Module
Our new RAZOR CUT 80 Air Compressor makes light-duty cutting and DIY projects effortless. Designed with a sleek, compact build, it's perfect for workshops and garages where space is limited or portability is essential.
Air Test
Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 18kVA for this machine.
Specifications
Primary Input Voltage
415V Three-Phase
Supply Plug
Unplugged (20A Recommended)
Ieff (A)
13.0
Imax (A)
19.0
Air Flow Draw (L/min)
120-150
Air Flow Pressure
58-73 psi
4-5 bar
0.4-0.5 MPa
Open Circuit Voltage (OCV)
325
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
18.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
22.00
Dimensions (LxWxH)
626 x 230 x 416mm
Plasma Cut Current Range
20-80A
Plasma Cut Duty Cycle @ 40°C
40% @ 80A
60% @ 66A
100% @ 51A
Mild Steel Cut Thickness
25mm
Mild Steel Severance Thickness
35mm
Stainless Steel Cut Thickness
22mm
Stainless Steel Severance Thickness
30mm
Aluminium Cut Thickness
22mm
Aluminium Severance Thickness
30mm
