Weldclass Fury 185 Mig/Stick/Tig Pulse Welder Value Kit



Amp up your welding ambition and weld like the best with this simple-to-use pulse machine! The FURY 185 MPST delivers professional results from standard 10A power supply. Compact, powerful and easy to use, it features Pulse MIG, Pulse STICK and Pulse Lift DC-TIG, giving you greater control, reduced spatter and cleaner-looking welds.
With 185A max output, it welds from approx. 0.8mm to 10mm, ideal for workshop, site and serious DIY use.
Pulse MIG provides a smoother arc and lower heat input, making it perfect for Aluminium, Stainless and Mild Steel. And it’s Spool Gun ready for easier Aluminium welding.
Pulse STICK improves control in vertical and overhead positions, helping reduce sagging and burn-through.
Adjustable Pulse Lift-TIG (torch optional) allows you to fine-tune heat input for professional-looking welds on steel and stainless.
Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. Geared 2-roll wire drive system ensures smooth, positive feeding — especially important for soft wires like Aluminium.
Supplied as a comprehensive Value Kit, with bonus Promax 130 welding helmet, gloves, MIG pliers, cooler bag.
Advanced Pulse performance. 10A convenience. Awesome value!

PROCESSES:

• MIG: Single-Pulse and Non-pulse
• Gasless MIG
• MIG Spool Gun
• Stick / MMA: Pulse and Non-pulse
• TIG (DC lift-arc for steel/stainless): Pulse and Non-pulse

WHY PULSE?

• Pulse MIG Welding (Single Pulse) allows you to weld like a pro, with very low spatter, super smooth welds and low distortion. Suitable for welding Aluminium, Stainless and Carbon Steels
• Pulse STICK welding allows smoother, cleaner welds in hard to weld positions like vertical-up and overhead, plus helps bridge large gaps without burn through.
• Pulse DC-TIG Welding (Lift-TIG) is well suited to creating scalloped looking TIG Welds on Stainless and Carbon Steels (stack of Dimes look) so your TIG welds exhibit the best in appearance.

AT A GLANCE:

• 185A @ 13% max output
• MIG weld up to 8mm mild steel, Stick weld up to 10mm
• Fitted with 230V 10A plug
• Takes 1kg and 5kg spools
• Supplied as a Value Kit with bonus helmet, gloves, pliers, cooler bag
• Pulse mode in all functions (MIG, Stick, TIG)
• Simple and very user-friendly controls

KEY FEATURES:

• Industry-first 7-year warranty **
• Very easy to navigate user interface: Intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual
• Large, colour LED display
• Choice of Manual MIG (voltage and wire speed adjusted manually), or Synergic MIG (set wire type/size, then just adjust one output dial based on material thickness)
• Choice of Pulse mode in all processes (MIG, Stick, TIG)
• Stick/MMA pulse adjustable frequency 1-10Hz
• TIG pulse adjustable frequency 1-10Hz
• Spool Gun Ready, Ideal for welding aluminium
• Lightweight and compact
• Large “35-50” output cable connections
• Quick-connect gas inlet fitting, for fast & easy gas hose fitting/removal

APPLICATIONS & CAPABILITY

• Ideal for trade, farm, maintenance, and serious hobbyist use
• MIG welding 30-185A with solid Steel 0.6/0.8/0.9mm wire, material thickness approx. 0.8-8mm
• MIG welding 30-185A with solid Stainless-Steel 0.8/0.9mm wire (0.8mm wire is best suited), material thickness approx. 1.2-10mm
• MIG welding 30-185A with solid Aluminium 0.9/1.0mm wire (1.0mm wire is best suited), material thickness approx. 1.2-10mm
• Gasless ‘MIG’ welding of steel 30-185A with 0.8/0.9mm flux-cored wires, material thickness approx. 1.2-8mm
• Stick (MMA) welding 10-160A with most types of common electrodes (1.6/2.0/2.5/3.2mm), including steel & stainless, material thickness up to 10mm
• TIG welding 10-160A (DC lift-arc) of steel, stainless, copper & chrome molly, ferrous metals, up to 8mm max thickness, using 1.6/2.4mm tungsten electrodes
• NOT suitable for TIG welding of aluminium (this requires AC/DC TIG capability)

TECHNICAL SPECIFICATIONS:

• Output Amperage: 30 – 185A
• Power Supply: Single phase 230V-240V, 3 pin
• Wall Socket & Plug: 10A Domestic Power
• Output Terminals: Large 35-50 Dinse Style
• MIG Duty Cycle: 185A @ 13% | 86A @ 60% | 67A @ 100%
• MMA Duty Cycle: 160A @ 13% | 74A @ 60% | 58A @ 100%
• TIG Duty Cycle: 160A @ 30% | 113A @ 60% | 88A @ 100%
• Generator Size: 9kVA for maximum output
• IP Rating: IP21S
• Wire Spool Sizes: D100mm / 1kg and D200mm / 5kg

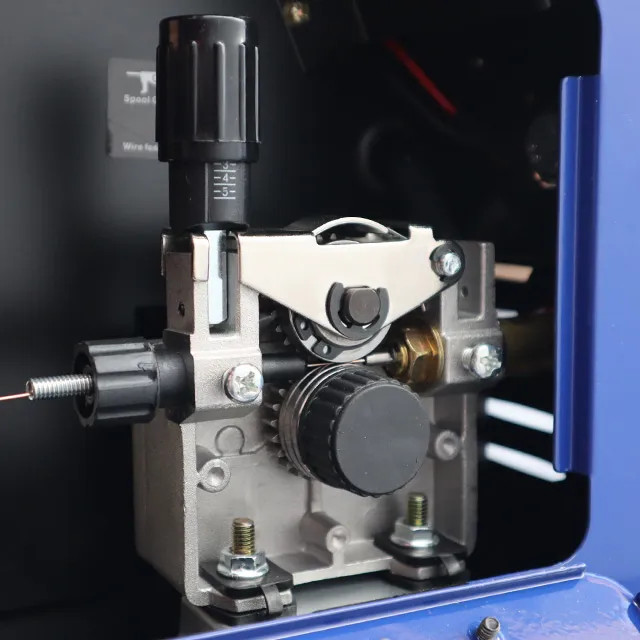

• Wire Drive System: 2 Roll, Geared-Drive Top & Bottom (well suited for feeding aluminium wires)
• MIG Feed Roll Size: O.D. 30mm x I.D. 22mm x Width 10mm
• MIG Gun Type: BZL 24 x 3m
• Dimensions of machine only including handle: L465 x W225 x H365mm
• Weight of machine only: 10.5kg

INCLUDES:

• FURY 185 MPST Machine
• PROMAX 130 Auto Darkening Helmet
• MIG Gun BZL24 x 3m
• Earth / Work return Lead & Clamp 3m
• Stick Welding Lead with Twist-Lock holder 3m
• Gas regulator and 2.5m Hose with quick-connect fitting to machine
• Wire Feed Rollers: Solid/Steel 0.8/0.9mm, Flux-Cored 0.8/0.9mm, Aluminium 0.9/1.0mm
• Welding Gloves
• MIG Pliers
• Cooler Bag - For Hot Days and Cold Drinks

OPTIONAL ACCESSORIES:

• TIG Torch #17FV 4m (WC-00992)
• Spool Gun BZL24 5m (W06316)
• T100 Welding Trolley (WC-06235)

COMMON SPARE PARTS

• MIG Torch and Spares (BZL 24)
• Drive Rollers
• Gas Hose (WC-03338)
• Earth Lead (WC-06232)
• Electrode Holder Lead (WC-06233)

**Standard warranty 3 years, with extended 7 year warranty available if registered online after purchase, click here for details.
