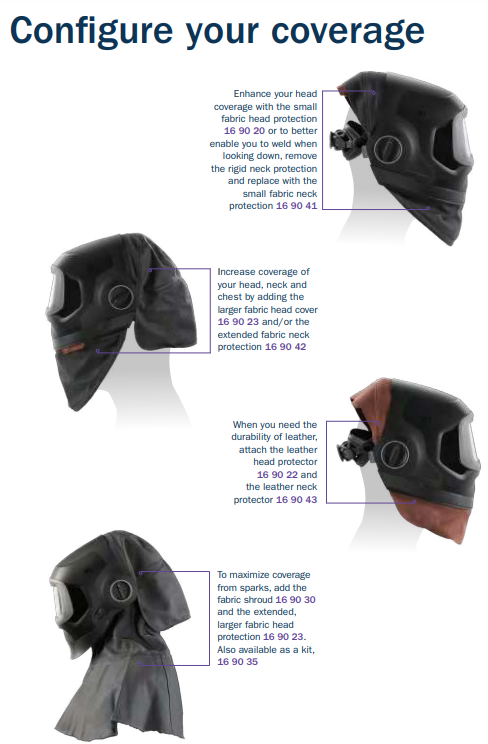

The non-respiratory Speedglas G5-03NC Pro welding helmet is designed with premium Speedglas features and optics, from True-View technology for more realistic optics to shade 5 SideWindows for enhanced peripheral vision. The helmet is also compatible with a series of optional extras in the form of configurable head & neck covers and a helmet-mounted task light specifically designed for welding. Don’t compromise on comfort, performance, or safety.
Features:
Powerful Arc Detection:
The G5-03NC welding lens sensors are capable of detecting a welding arc down to an industry-leading 1 amp, with a centre sensor for TIG welding applications.
All Welding Applications with Multiple Modes:
With shades 3, 5, 8-12 and multiple mode settings you can weld, grind, cut and tack, indoors and outdoors even with a completely hidden arc.
Lock into Cut and Grind Modes:
Dedicated modes allow you to lock the welding lens into its light state (shade 3) for grinding applications, or shade 5 for cutting applications.
Welding Task Light:
An optional helmet-mounted task light is available, allowing you to light up your workspace. The lightweight battery-powered light is designed to cast a wide light, with configurable light intensity.
Speedglas SideWindows for Welding Safety:
Previously hidden peripheral hazards (beams, obstacles and other workers) are now visible through two, shade 5 side lenses (conventional shade 12 protection).
- Relevant Welding Helmet Standards:
- Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact)
- Speedglas TrueView Welding Lens:
- Yes
- Stick Welding:
- No
- MIG Welding:
- Yes
- TIG Welding:
- Yes (industry leading detection down to 1 Amp)
- Grinding Feature:
- Grind Mode
- Memory Mode (Set-and-Forget):
- No
- SideWindow Peripheral Vision:
- Yes
- Hidden Arc Mode:
- Yes

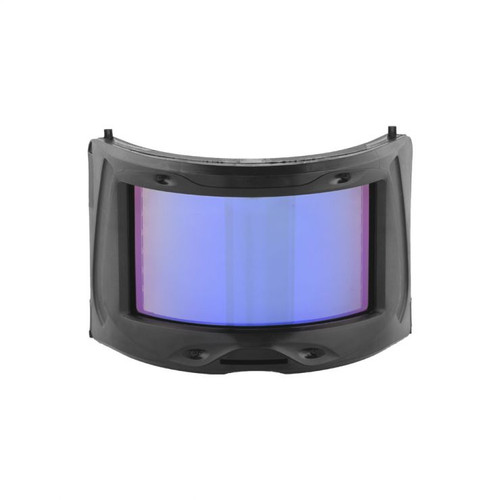

- Welding Lens Viewing area:
- 55 x 107mm + SideWindows
- Variable Dark Shades:
- Shade 5, 8-12
- Light State:
- TrueView Shade 3
- UV Protection:
- Shade 12 (permanent)
- Switching time, light-dark:
- 0.1 ms (+23 C)
- Delay (switching time, dark-light):
- 40-470 ms
- Blue-Tooth Enabled:
- No
- Optional Task Light:
- Yes
- Comfort Exhaust Vents:
- No
- Head Harness:
- New G5-03 Pro Head Harness
- Safety Helmet:
- No
- Required minimum protection factor:
- N/A
- Air flow Level:
- N/A
- Adjustable Air Control:
- No
- Adflo Battery Run Time:
- N/A
- Adflo Battery Charge Time:
- N/A
