The Speedglas G5-03VC Pro non-respiratory welding helmet includes a highly advanced welding lens with new TAP Technology for switching between modes (weld/cut/grind), Variable Dark State Colours, TrueView to enhance the light state, an extra dark shade 14 for heavy-duty welding, Bluetooth connectivity, and arc detection down to 1 Amp. Welders benefit from a new extra comfort head harness, fully customisable head and neck coverage options, and an optional helmet-mounted task light for welding in low light conditions.
Features:
New TAP Functionality for Seamless Switching:
Speedglas TAP Technology gives welders the ability to switch between welding, cutting and grinding modes by tapping the outside of the welding helmet. This allows welders to switch between lens settings while keeping their welding helmet in the safe down position, and their face and eye protection in place.
Heavy-Duty, High-Amperage Welding:
Optimised for welding at high amperages, the G5-03 VC welding lens features an extra dark state shade 14 for heavy-duty welding applications.
Bluetooth Connection:
Welding lens settings can be controlled from your smartphone via the 3M Connected Equipment App. Program pre-set memory modes, switch between Variable Colour tones and welding shades, all from the palm of your hand.
Speedglas Variable Colour:
Exclusive Variable Colour Technology allows welders to toggle between natural, cool and warm colour tones in the dark state - for greater contrast and comfort. You select the colour tone that provides the most comfort and best contrast for your eyes.

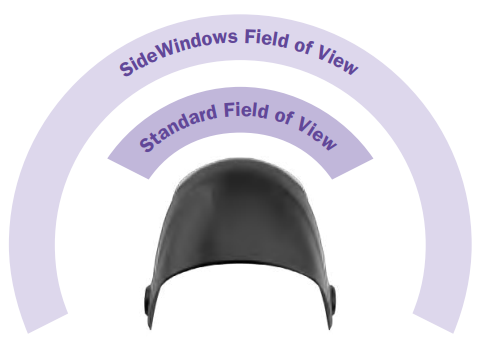

Extra-Large Viewing Area with SideWindows:
Weld with greater vision, colour and clarity! The expansive 73x109mm viewing area, paired with Speedglas peripheral SideWindows, offers one of the largest welding helmet viewing areas on the market.
Industry-Leading Arc Detection and Switching:
Capable of detecting an arc down to 1 amp, the G5-03 VC lens has powerful photo sensors and reliable switching from light to dark (just 0.1 ms). Auto-On technology ensures your welding helmet is immediately ready to weld; programmed to your last used welding settings.
Configurable Head & Neck Protection:
For welders that require extra coverage for heavy-duty welding environments, the G5-03 VC Pro is compatible with a range of additional head and neck covers. Choose from fabric or leather, to protect against sparks and splatter.
- Relevant Welding Helmet Standards:
- Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact)
- Speedglas TrueView Welding Lens:
- Yes
- Variable Colour Technology:
- Yes
- Stick Welding:
- Yes
- MIG Welding:
- Yes
- TIG Welding:
- Yes (industry leading detection down to 1 Amp)
- Grinding Feature:
- TAP Technology (shade 3)
- Memory Mode (Set-and-Forget):
- Yes
- SideWindow Peripheral Vision:
- Yes
- Hidden Arc Mode:
- Yes
- Welding Lens Viewing area:
- 73 x 109mm + SideWindows
- Variable Dark Shades:
- Shade 5, 8-14
- Light State:
- TrueView Shade 3
- UV Protection:
- Shade 14 (permanent)
- Switching time, light-dark:
- 0.1 ms (+23 C)
- Delay (switching time, dark-light):
- 50-1300 ms
- Blue-Tooth Enabled:
- Yes
- Optional Task Light:
- Yes
- Comfort Exhaust Vents:
- No
- Head Harness:
- New G5-03 Pro Head Harness
- Safety Helmet:
- No
- Required minimum protection factor:
- N/A
- Air flow Level:
- N/A
- Adjustable Air Control:
- No
- Adflo Battery Run Time:
- N/A
- Adflo Battery Charge Time:
- N/A
