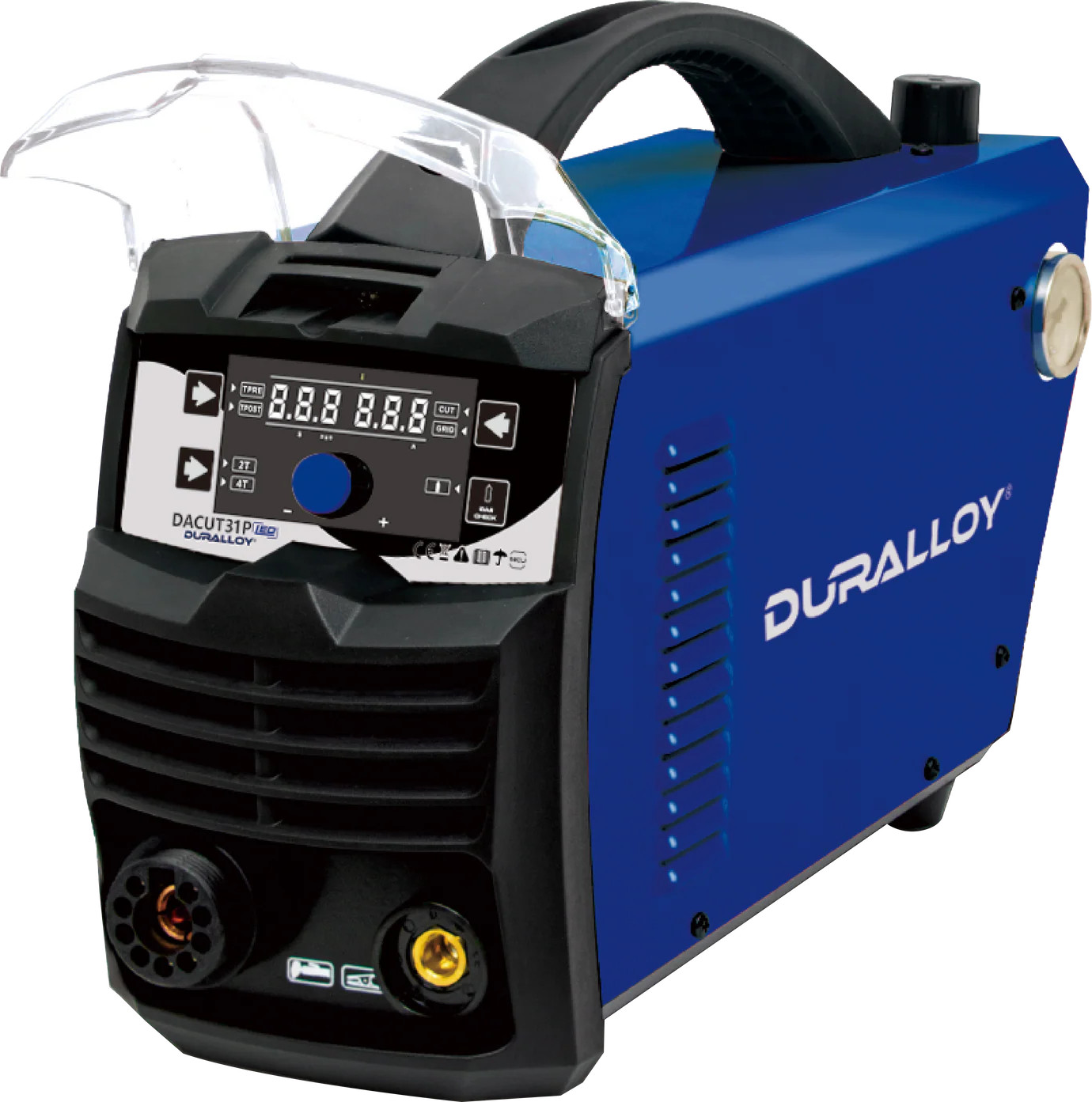

10 Amp 240V Inverter Plasma Cutter
Package Inclusions
- Power Source
- 4M PT60 Plasma Torch
- 3M Earth Lead
- Owner’s Manual
Features & Specifications
PILOT ARC CONTROLLER
Increases cutting capabilities and speed. Extends tip's Life. ideal for grid cutting.
PROTECTIONS
Equipped with temperature, voltage and current sensors for greater protection.
GENERATOR FRIENDLY
Designed to work from power Generators (6kVA)
COMPRESSOR REQUIREMENT
12CFM Compressor
FEATURES
Generator friendly (6kva)
IP21S Rating
Protective Front Fascia Cover
Air test function
4m PT60 Plasma Torch with Central Adaptor
Built-in Regulator
APPLICATIONS
Boat Building
General Fabrication
Automotive Crash Repair
Aluminum Fabrication
Stainless Fabrication
On-Site Fabrication
MATERIALS
Mild Steel
Aluminium
Stainless Steel
SPECIFICATIONS
Power Supply 240V
Supply Plug 10 Amps
Rated Imput Current 22A
No-Load Voltage 310V
Current range 20-30A
Rated Output Voltage 88-96
Duty Cycle (40 Degrees C 10Min) 30A @30%
Severance Cut for Carbon Steel 15mm
Production Cut
Carbon Steel 10mm
Stainless Steel 10mm
Aluminium 10mm
Copper 6mm
Net Weight 7.3kg
Dimensions 505mm x 147mm x 305mm
Insulation Class H
Protection Class IP21S
Power factor 0.63
Air Compressor MPa 0.3-0.45
